4 crank hospital bed trendelenburg

Home manual hospital beds 4 crank hospital bed trendelenburg

4 crank hospital bed trendelenburg

4 crank manual hospital Trendelenburg bed;



Backrest, knee, whole height, Trendelenburg and revers adjustment;



Much cheaper price of intensive care bed.

manual hospital beds2020-05-28h90

Description

4 crank hospital bed

Based on the design of 3 crank hospital bed, it features of the Trendelenburg and revers of hospital bed position.

It is an economical Trendelenburg bed function compared with the electric ICU bed.

4 crank hospital bed working theory

There are 4 cranks for the backrest, knee, Trendelenburg and revers position for relatively adjustable position.

How to realize the Trendelenburg bed high low adjustable?

Backrest and knee adjusts as flat position, adjust the Trendelenburg, then later adjust the revers position, the hospital bed height will be high or low according to you need.

Quality Control

* L-shaped foldable guardrail, modern and beautiful, easy to install, easy to clean, anti-pinch, protect patient’s safety

* Environmental plastic can be sterilized in 100 °C, tensile up to 30MPa

* Solid bed base made of 5.0 mm stamped rotating plate

* Retractable hand crank, 100,000 times remaining intact

* 11 Process epoxy painting, ASTM testing antibacterial, paint thickness 0.12 mm, brightness 60°, paint can resist 50 kg impact

* Panasonic Robotic ensure

* 360°full smooth wedding

* Strong pallets to increase the bed height adjustment(460-720 mm)



Accessories detail

* Stamping forming platform, smooth surface no welding scar, bearing 250KG load.

* L-shaped foldable guardrail(Patent), bent tube, solid installing, 0 shaking, anti-pinch, protect patient’s safety

* Virgin ABS material

* Pass Dynamic test: Bearing 120 kg, run 30KM and pass obstacles 500 time

* Plastic drainage hook, movable

* Full SS IV pole, bearing 15 kg

* Lifting pole – Bearing 765 N force

* Anti-bumper on the hospital bed head and end board.

Parameter

External L*W*H 2170*960*(460-720)mm
Mattress Platform 1925*830 mm
Safe Working Load 250 kg
Back-rest Adjustment 0-75°(±10°)
Knee-rest Adjustment 0-35°(±10°)
Reverse Trendelenburg position 0-12°
Trendelenburg position 0-12°
Manual Cranks 4pcs
5″ (125mm)Double Side Castors 4pcs
Foldable Side Rail 1set
ABS Bed Ends with Safe Lock 1set
IV Pole 1set
IV Pole Stand holes 4pcs
Drainage Hook 2 or 4pcs options

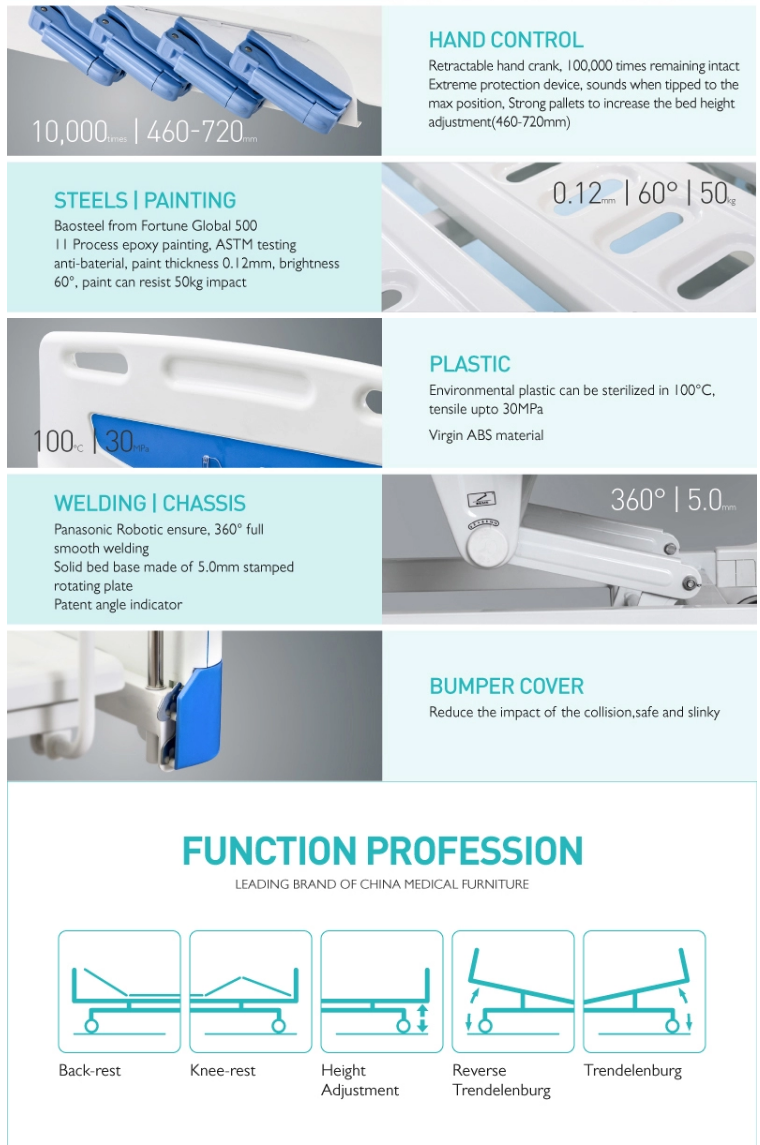

4 crank manual hospital bed feature

Photo of 4 crank manual Trendelenburg bed position, Trendelenburg feature.

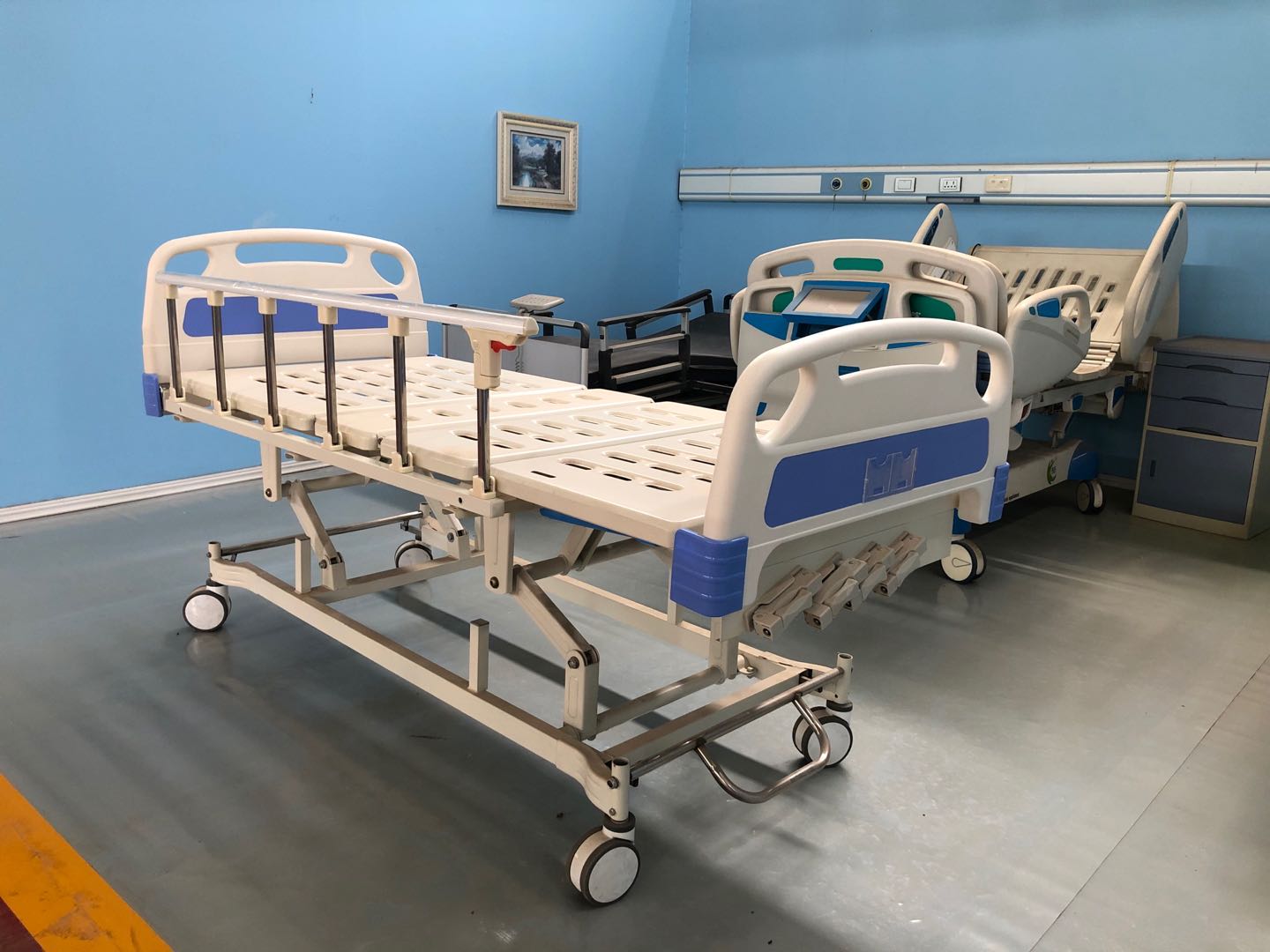

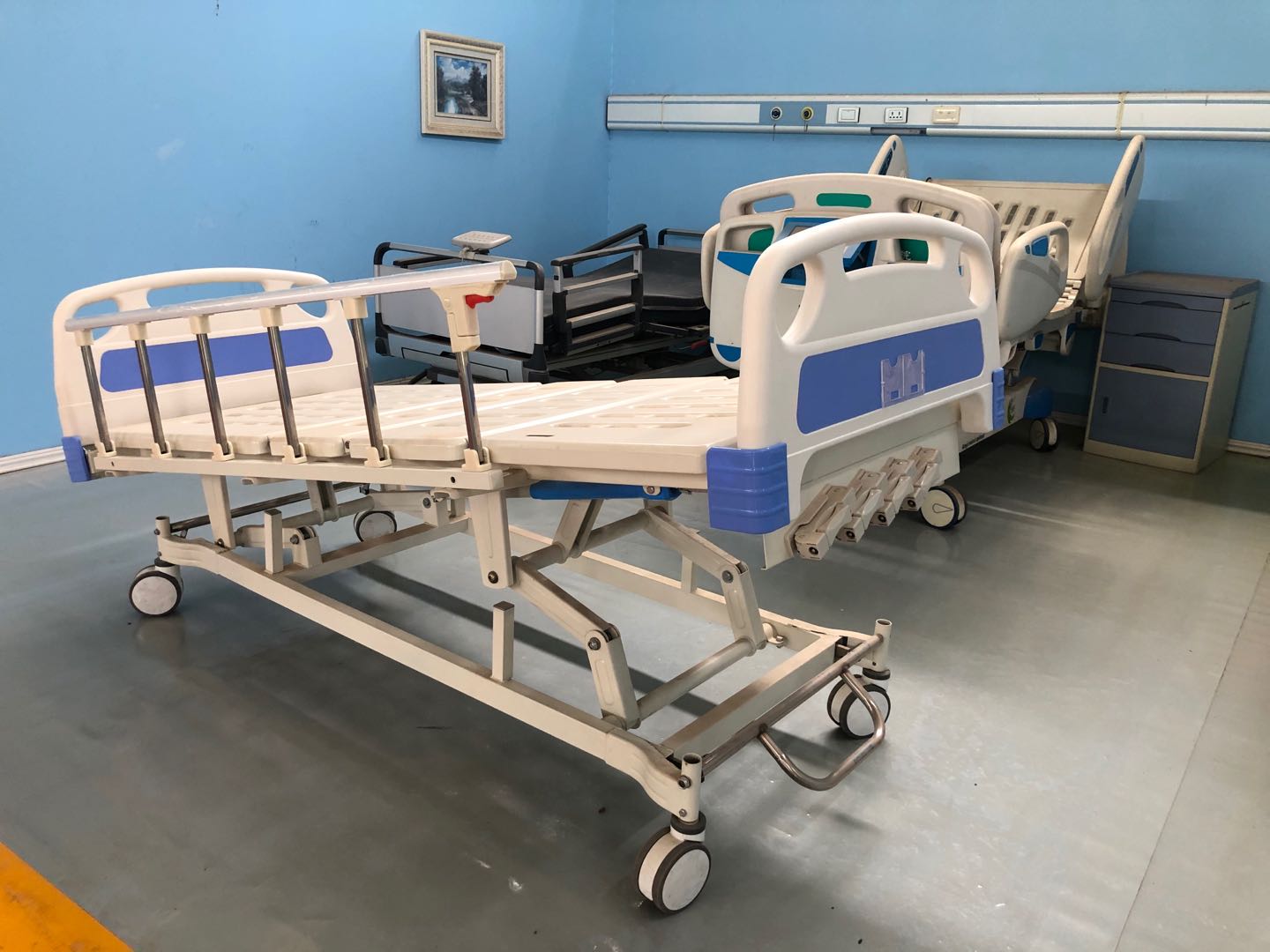

four crank hospital bed high and low

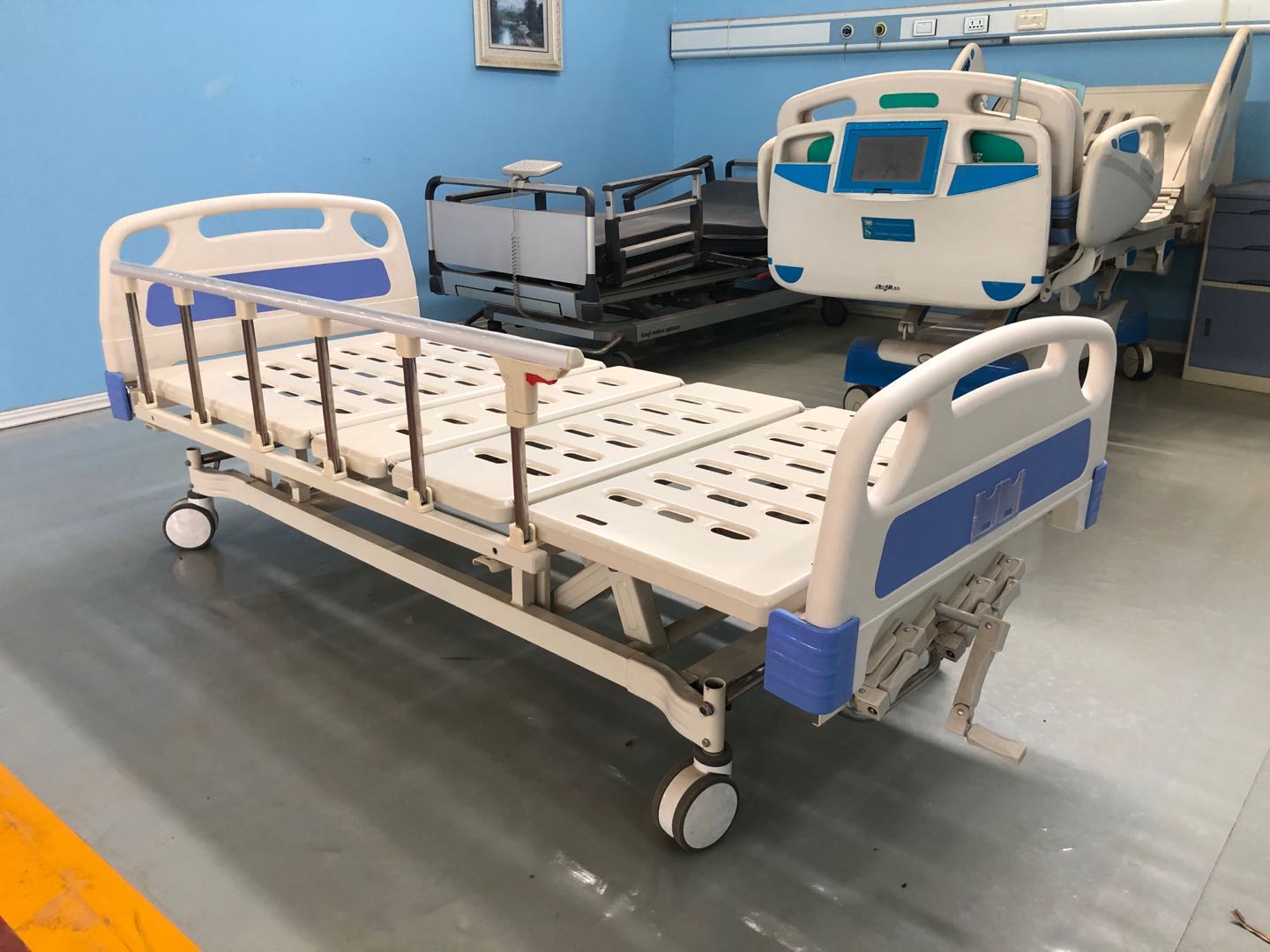

four crank manual hospital bed product
four crank hospital bed for sale

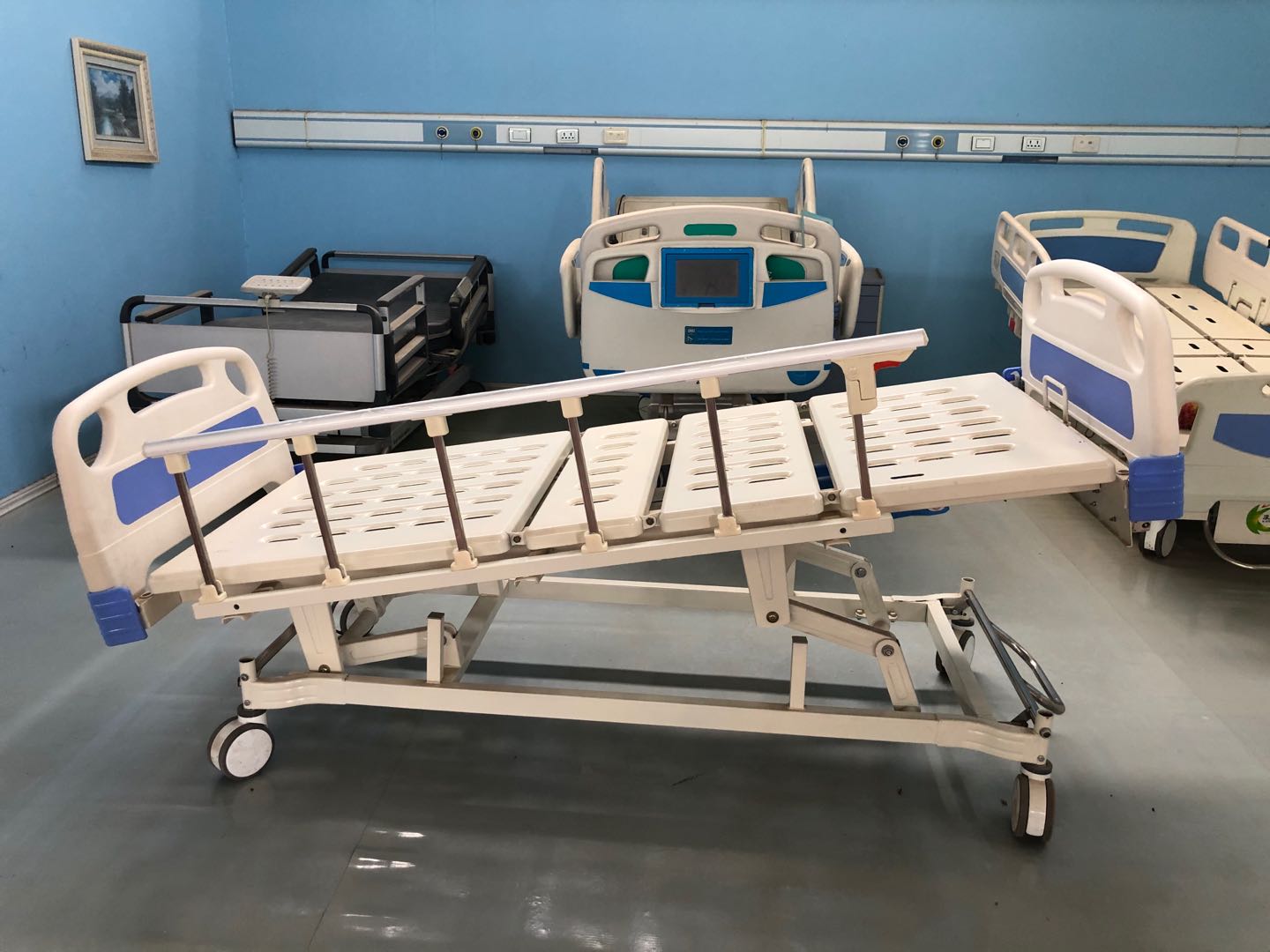

4 crank hospital bed trendelenburg revers postion

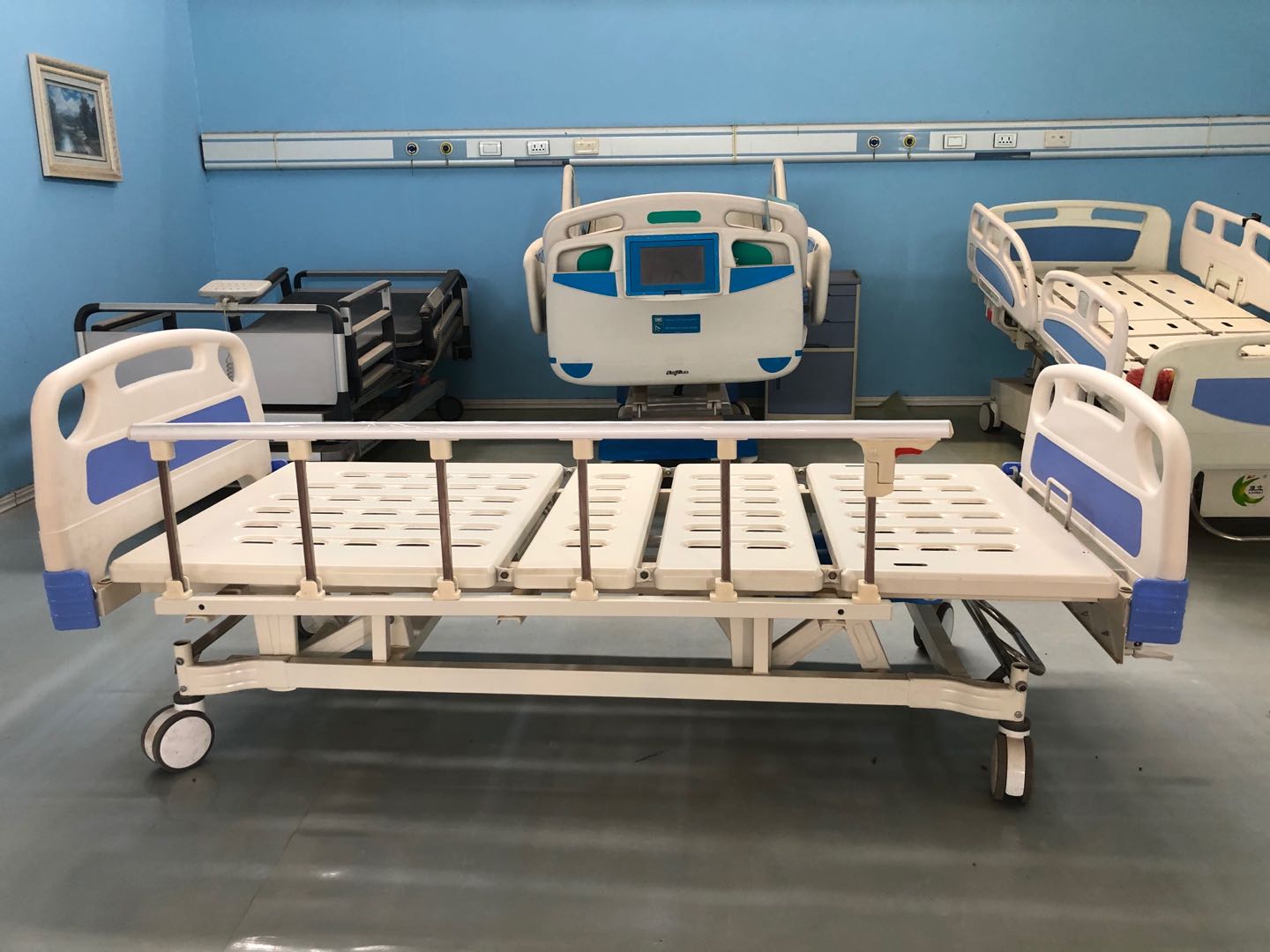

4 crank hospital bed trendelenburg position

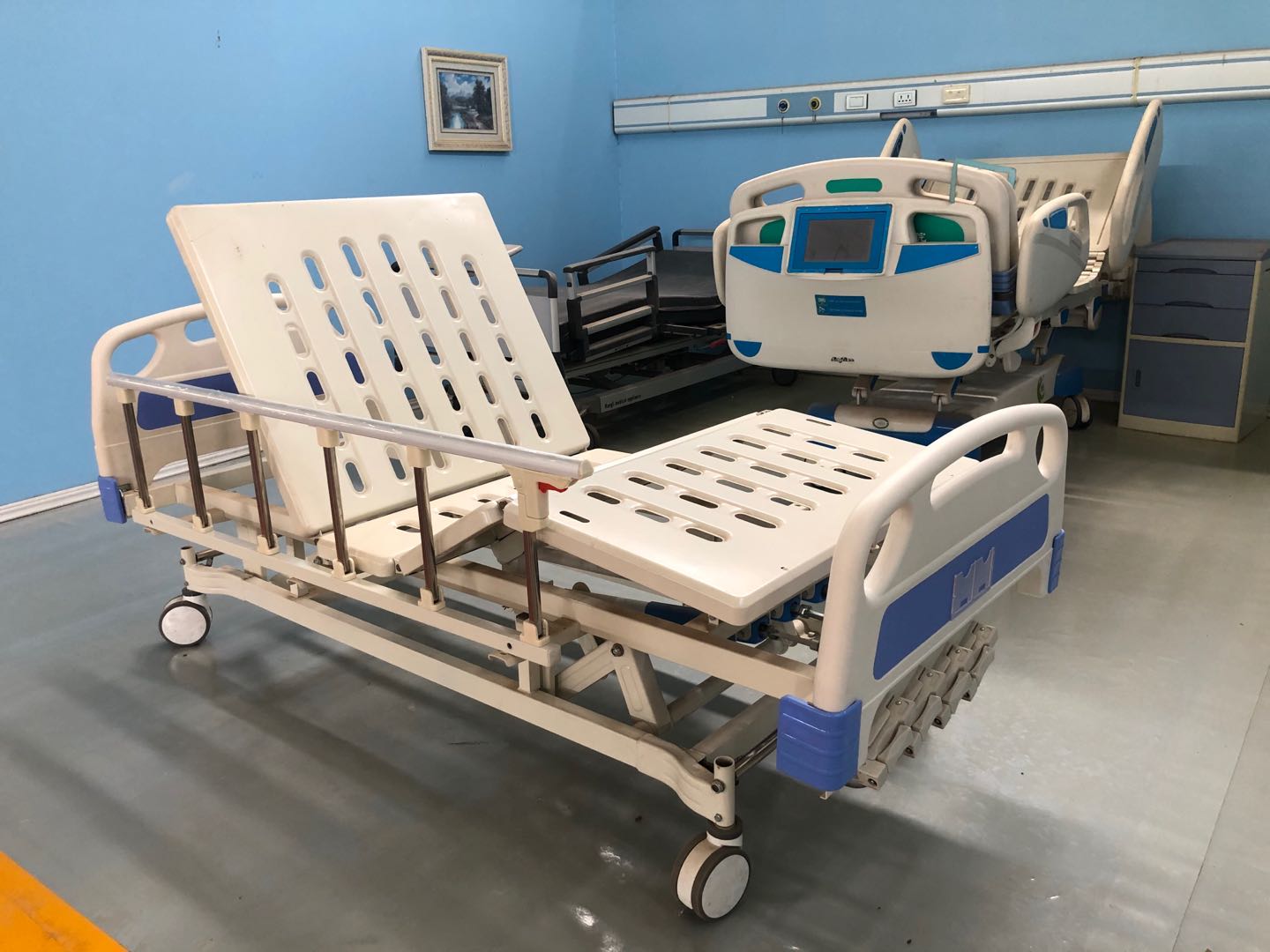

4 crank hospital bed back and knee contour position

For professional intensive care bed(ICU bed), Click followings image

icu bed trendelenburg

Electric ICU bed Trendelenburg
