Intensive Care Bed

Home electric hospital beds Intensive Care Bed

Intensive Care Bed

This intensive care bed is a high-quality and versatile medical bed that provides patients with comfort and convenience while also meeting the needs of healthcare professionals.

Feature:

  • Mounted on two telescopic columns
  • Back section translucent x-ray

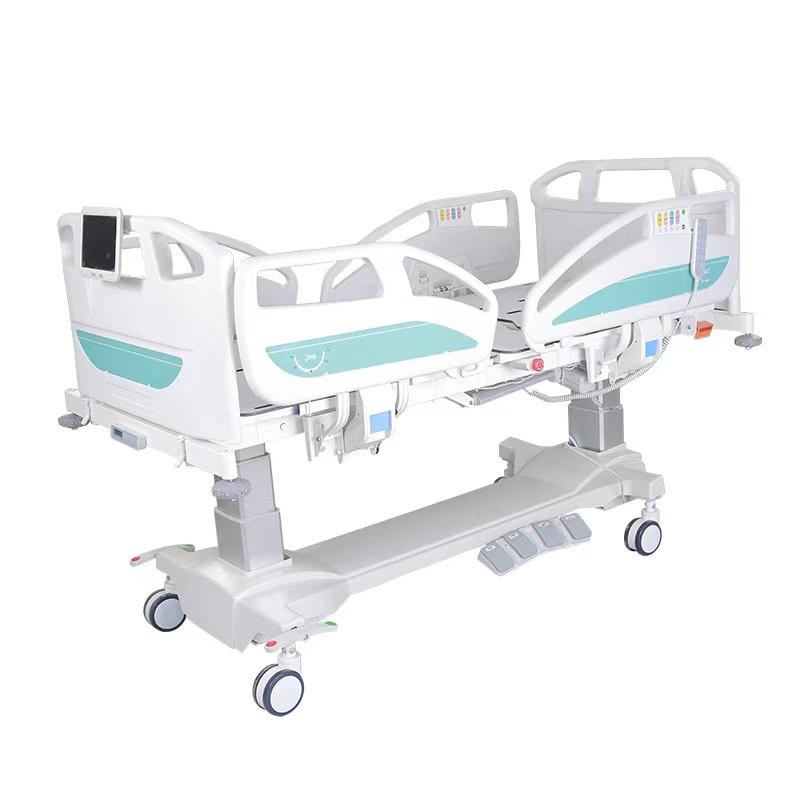

  • Build in patient weighting system
  • 44 set/ 40ft container
electric hospital beds2019-12-10h90 Tags: ICU Bed

Description

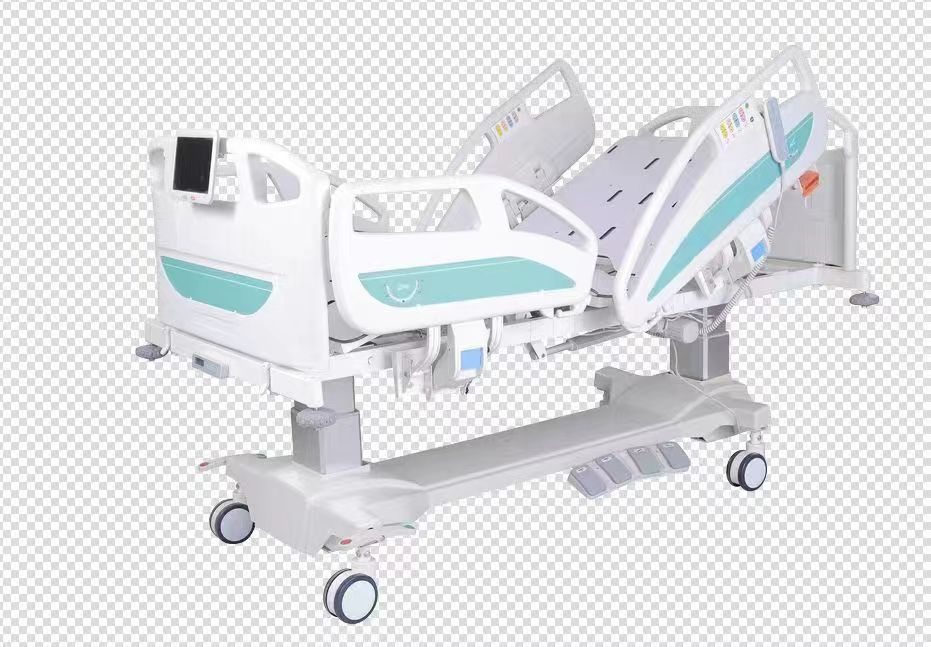

Paramount 7 functions hospital bed

The intensive care bed is a state-of-the-art medical bed that provides comfort and convenience for patients who require intensive care. It is designed with advanced features and functions to meet the needs of healthcare professionals and patients alike.

The bed is controlled by a nursing LCD, allowing for easy and accurate adjustment of the bed’s position and functions.

It is equipped with electric telescopic columns that enable the height of the bed to be adjusted to meet the needs of the patient. Additionally, the bed features a back section that can be adjusted up and down, a knee section that can be raised or lowered, and an auto-contour function that allows for the bed to be adjusted to the patient’s body shape.

The bed also includes a built-in weighing system that can accurately measure the patient’s weight. The X-ray transparent dorsal section and pelvic part with a built-in cassette holder for X-ray scanning make it easy to conduct medical procedures.

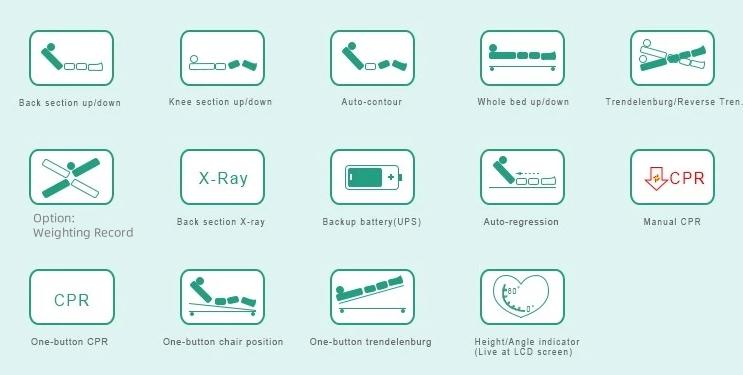

Hospital bed function

  • The bed’s functions include:
  • whole bed up and down,
  • Trendelenburg and reverse Trendelenburg,
  • one-button Trendelenburg,

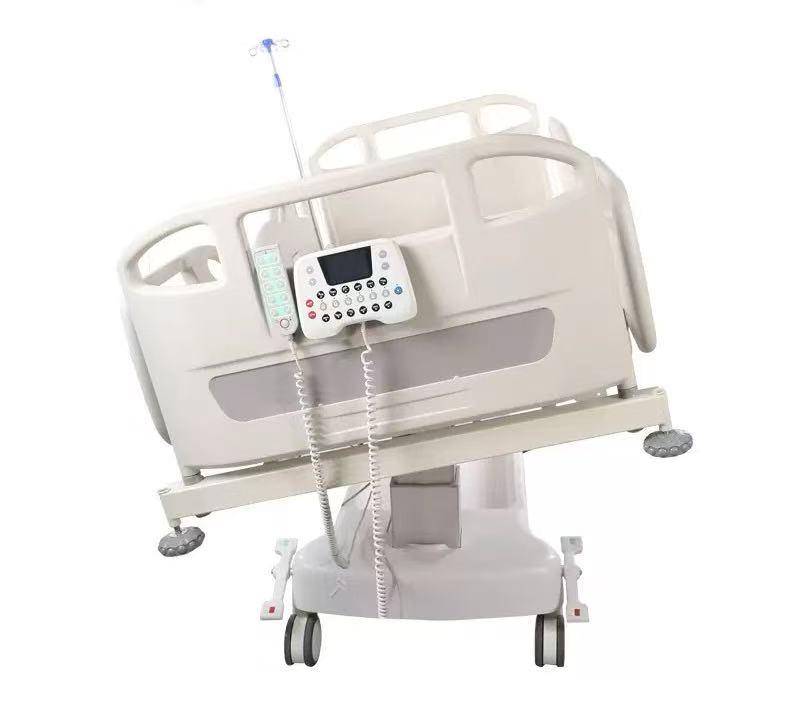

  • Bed board lateral tilting,
  • manual and one-button CPR,
  • one-button heart-chair position,
  • angle indicator,
  • built-in patient control button on side rail,
  • foot-pedal control for height and lateral slope.
  • Backup battery to ensure that it remains functional during power outages.



paramount hospital bed functions



hospital bed telescopic column



Telescopic column mounts on the hospital bed for adjustment function;

central locking brake pedal.





Bed adjustment function on LCD nursing board.

icu bed control panel

Specification

*4 sectional mattress platform covered with lightweight roof panels. In order to ensure easy cleaning and disinfection, the design of the platform must allow reliable fixation of panels without connecting elements
*mattress platform adapted for X-ray scanning, incl. scan with C shoulder
* X-ray transparent dorsal section and pelvic part with built-in cassette holder for X-ray scanning
*telescopic electrically driven columns made of disinfectant-resistant material and easy to clean-2 pcs.
* individual current protection of each motor, protecting against damage to the motors from overload
 * convenient and easy to clean construction, which helps prevent nosocomial infections
* Removable trays at   the patient’s head and legs made of waterproof material that allows active disinfection with colored panels and locking mechanism to prevent involuntary their subtraction.  Design of the trays to be without connecting elements in order to facilitate cleaning
* The bed should be equipped with a central control panel, inaccessible to the patient, with the following functions and characteristics:
 – button to activate the patient desk
– button to lock the movement of the   lower leg support, the movement of the   hip support and the extension of   the bed with LED indicator
– button to lock the movement of the back support with LED indicator
– lock button adjusting the height and tilt of the slatted platform, Trendelenburg and Anti-trendelenburg position with LED indicator
 – button for locking the pedal control with LED indicator
– LED indication of the power supply from the mains
– LED indication of battery charge
– buttons for positioning the hip support
– buttons for positioning the back support
– buttons for positioning the support of the lower legs
– buttons for adjusting the height of the mattress platform
 – buttons for extension of the mattress platform
 – button for saved Trendelenburg position
– button for memorized position,  “Heart chair”
 – buttons for adjusting the lateral slope of the mattress platform
– buttons for adjusting the Trendelenburg/Anti-Trendelenburg position
– button for memorized position convenient for resuscitation of the patient
* the bed should be equipped with removable side partitions for the  upper part of the patient’s body with built-in controls and LCD with the following functions and characteristics:
 – button to activate the patient desk
– buttons for positioning the back support
– buttons for positioning the hip support
– buttons for positioning the support of the lower legs
– buttons for adjusting the height of the mattress platform
– button for memorized position to mobilize the patient
– button for memorized position convenient for resuscitation of the patient
– button for memorized position,  “Heart chair”
– buttons for adjusting the Trendelenburg/Anti-Trendelenburg position
 – button for simultaneous adjustment of section back and thigh section
 – button to stop all movements of the bed
 – button for adjusting the lateral slope of the mattress platform
– alarm control buttons for leaving the bed
 – button for zeroing a weighing system the patient’s weight
– button to clear the value of the patient’s weight
–   hold button – allows adding or removing accessories, equipment, etc.  from   the bed without changing the value of the patient’s weight
– button for saved weight values
– button to switch the accuracy of measurement through 0.5 kg.  Or 0.1 kg.
– LED indication of the power supply from the mains
– LED indication of battery charge
 – LED indicators for locked movements:
– locked back support movement
– locked movement of the support for the thighs, lower legs and lengthening the bed
– locked movement to adjust the height of the mattress platform, lateral slope, Trendelenburg and anti-trendelenburg position
 – LED display with the following indicators:
 – position of section back
– back section angle
– lateral slope
– Trendelenburg and Anti-Trendelenburg position
–  patient weight value
– stored weight values
– measurement scale stabilization icon
–  hold icon
 * Integrated weighing system for the patient’s   weight, allowing the addition or removal of accessories, equipment, etc. from   the bed without changing the value of the patient’s weight
*alarm menu  :
– alarm icon for leaving the patient’s external area activating  with each weight reduction  on the bed
–  alarm icon for leaving an internal area of  the patient at each  change of load on the  individual sections  of the mattress platform
*4 pcs  double wheels with a diameter of  15 cm with central locking
*external dimensions of the bed 219/100/cm
*dimensions of the mattress platform: 208/90 cm
* electrical control at the height from  43.5 to 81.5 cm
* electric lifting of the dorsal section in a range of up to 65° with a system to  increase the distance between section back and section seat in order to reduce the  presence in the seat   area and prevention against the formation of decubitus wounds
*electric control of Trendelenburg/anti-trendelenburg: 14°/14°
 *Electric control on lateral slope ± 15°  with a no-go system with lowered side barriers
* Electric adjustment of the length of the mattress platform – possibility of extension by 22 cm
 * Ability to quickly mechanically bring the back support to a cardiac massage position using a CPR handle
 * Ability to quickly  electrically bring the back support to a cardiac massage position using a CPR button located on the central control panel
* load capacity 250 kg
* patient control panels located on the lower side partitions with the following functions
  – adjusting the movement of a back section
– regulation of the movement of section thighs
– simultaneous adjustment of the movement of section back   and thighs
  – button to activate the patient desk
*pedal control to adjust bed height
*pedal control for lateral slope of the bed
* battery to activate movements when disconnecting    it from the network and battery   status indicator located on the control panel
*  chassis cover made of anti-shock material
*side mattress holders
*horizontal and angular perimeter buffers
*slots for various hospital accessories such as infusion stands,   extension therapy system and more
*bilateral support for hanging small accessories
*  urinator bag holders attached to the bed frame – 2 pcs
*4 pcs clamps for fastening belts for fixing a patient
* the bed to be equipped with a telescopic stand for infusions with an “S” shape
* light diode light, providing the positioning of the bed in the room without the presence of lighting in it
*set of stabilizing pads for lateral therapy
*The bed should be equipped with a passive mattress with dimensions 208/90/15 cm and an antibacterial case
* a pair of folding auxiliary handles with buttons for adjusting the height of the bed to facilitate the patient’s self-mobilization



Paramount Intensive ICU bed main function video demonstration:

1,Back up and down

2,Knee up and down

3,Trendelenburg and revers position
