Advanced Hospital Orthopedic Bed with Adjustable Backrest and Footrest, and Orthopedic Frame

Home manual hospital beds Advanced Hospital Orthopedic Bed with Adjustable Backrest and Footrest, and Orthopedic Frame

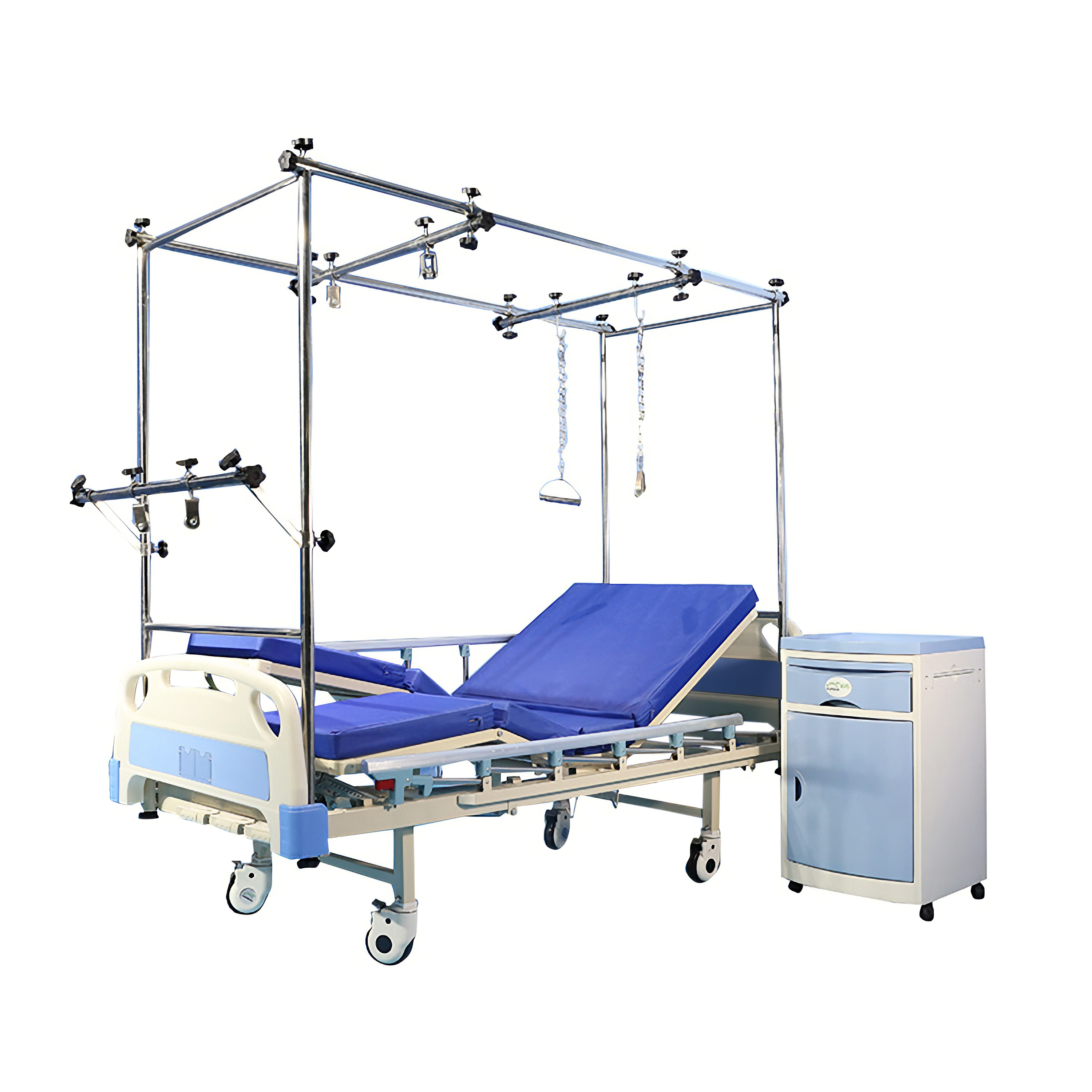

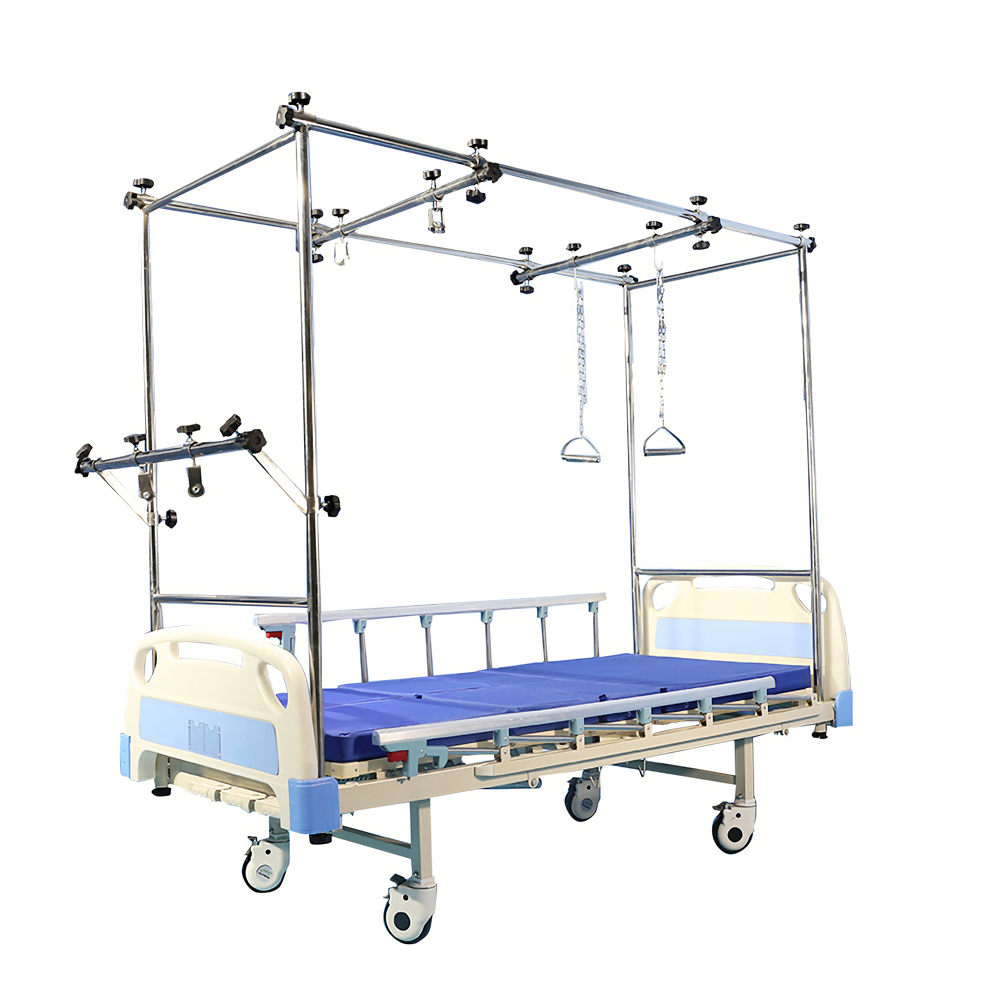

[caption id="attachment_622" align="aligncenter" width="1000"]orthopedic bed orthopedic bed[/caption] [caption id="attachment_623" align="aligncenter" width="3000"]orthopedic adjustable bed orthopedic adjustable bed[/caption] [caption id="attachment_624" align="aligncenter" width="1000"]ortho bed supplier ortho bed supplier[/caption]

Advanced Hospital Orthopedic Bed with Adjustable Backrest and Footrest, and Orthopedic Frame

This orthopedic hospital bed boasts a durable cold-rolled steel frame and adjustable backrest, offering optimal patient care and comfort.

Equipped with a specialized orthopedic frame and a secure braking system, it's designed to ensure the highest level of safety.

Manufacturer supports custom designs and OEM services at competitive prices.

manual hospital beds, Furniture Hospital2020-04-01h90

Description

Adjustable Orthopedic Bed

The orthopedic hospital bed is designed for patient care with robust features. It includes adjustable functions to enhance patient comfort and medical utility.

Functions:

Function Maximum Angle
Backrest Upward Angle 75°
Right Footrest Upward 40°
Left Footrest Upward 40°

The orthopedic hospital bed is designed with a user-friendly mechanism that allows for the adjustment of the backrest and the motion of both the left and right legs. This is facilitated by the presence of three manual cranks located on the footboard. Here’s how the adjustment process works:

  1. Backrest Adjustment: To adjust the backrest, the user or caregiver would locate the appropriate manual crank designated for this function. By turning this crank, the backrest can be smoothly elevated or lowered to the desired position, providing comfort and support for the patient.
  2. Left Leg Motion Adjustment: The second manual crank is dedicated to the motion of the left leg. Turning this crank will raise or lower the left leg section of the bed, which can help in alleviating pressure and improving circulation for the patient.
  3. Right Leg Motion Adjustment: Similarly, the third manual crank is used to adjust the motion of the right leg. Operating this crank will allow the user to independently control the elevation of the right leg section, ensuring a customized fit for the patient’s needs.

Features

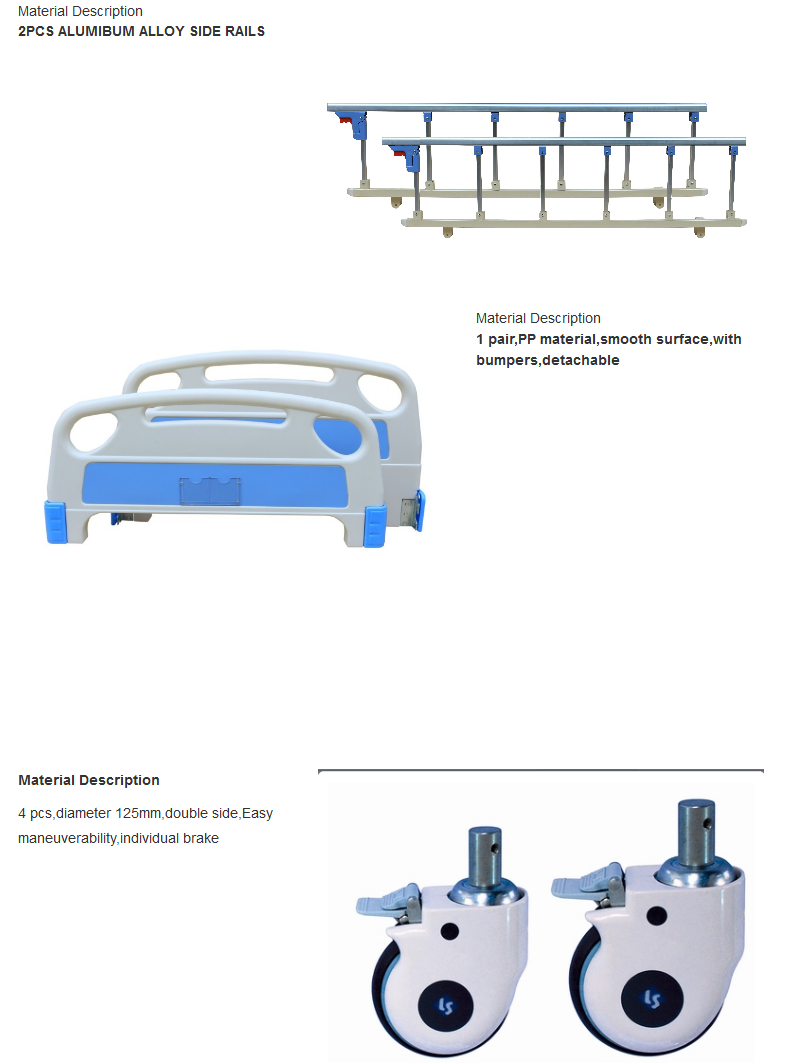

orthopedic bed accessories

  1. Durable Frame: Cold-rolled steel plate with electro and powder coating.
  2. Headboard/Footboard: ABS plastic, with a patient name card.
  3. Bed Board: Steel, with separate footrests for each leg.
  4. Handrails: Foldable, 6pcs aluminum alloy column, easy access to overbed dining table.
  5. Maximum Weight Capacity: Sturdy construction holds up to 250 kg.
  6. Braking System: 4 independent brakes with 125mm wheels.
  7. IV Pole and Drain Hook: Adjustable and convenient.
  8. Orthopedic Frame: Provides specific support for orthopedic patients.

Parameters

Parameter Specification
Size (L x W x H) 2130 x 990 x 490 mm
Frame Material Cold-rolled steel plate
Weight Capacity Up to 250 kg
Wheel Diameter 125 mm
FAQ

Q: What is the primary purpose of the Adjustable Orthopedic Bed?
A: The Adjustable Orthopedic Bed is engineered to deliver superior patient care, especially for individuals with orthopedic conditions. It boasts adjustable features to elevate comfort and medical functionality, aiding in the recuperation and overall well-being of patients.

Q: What are the adjustable functions of the bed and their maximum angles?
A: The bed offers adjustable backrest and footrests. The backrest can be tilted up to a 75° angle, while the right and left footrests can be lifted independently up to a 40° angle.

Q: Does the bed come with a special mattress?

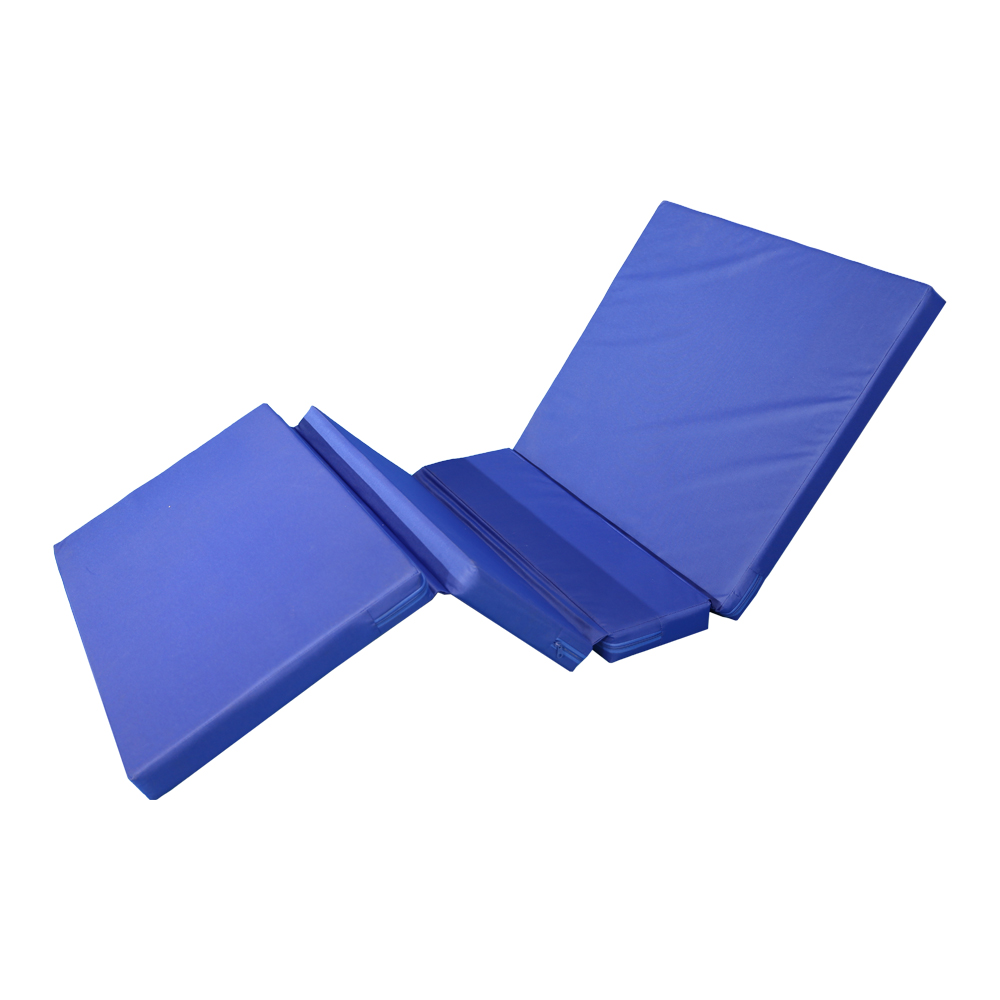

A: Yes, the Adjustable Orthopedic Bed includes a specially designed mattress that complements the bed’s features. This unique mattress allows for independent adjustment of the left and right leg sections, enhancing the patient’s comfort and support.

Q: Are there any additional features for patient convenience?
A: Absolutely, the bed is equipped with foldable handrails featuring 6pcs aluminum alloy columns, facilitating easy access to an overbed dining table. A patient name card is also included on the headboard/footboard, along with an adjustable IV pole and drain hook, and a braking system with 4 independent brakes and 125mm wheels.

Q: Is the bed specifically suitable for orthopedic patients?
A: Indeed, the bed includes an orthopedic frame that offers specialized support for orthopedic patients, contributing to their recovery and comfort.

Q: How do I operate the bed’s braking system?
A: The bed is fitted with 4 independent brakes, which can be individually activated or deactivated as required. The 125mm wheels also enhance the bed’s maneuverability and steadiness.

Q: How do I maintain the bed to ensure its longevity?
A: Regular cleaning with a mild detergent and a soft cloth is advised to preserve the bed’s appearance and functionality.
