Navigating ICU Bed Supply: A Comprehensive Guide for Hospital Distributors

In the complex world of healthcare procurement, few products demand as much attention to detail as Intensive Care Unit (ICU) beds. For hospital supplies distributors and importers, understanding the nuances of ICU bed specifications is essential to successfully fulfilling hospital project requirements. This guide explores the critical aspects of ICU bed supply that every distributor should know.

Understanding the Fundamental Nature of ICU Bed Projects

ICU bed procurement projects are inherently unique. Each healthcare facility has specific requirements based on their patient population, facility design, and clinical protocols. What makes ICU beds distinct from standard hospital beds is their advanced functionality—particularly electric Trendelenburg positioning and CPR features—that manual beds simply cannot provide.

When approaching an ICU bed supply project, it’s crucial to recognize that while basic functions remain consistent, the configuration of additional features can vary significantly between facilities. This variability necessitates close collaboration with both healthcare providers and reliable manufacturers.

Essential Functions of Standard ICU Beds

At minimum, all ICU beds must provide five fundamental adjustment movements:

1. Trendelenburg positioning
2. Reverse Trendelenburg positioning
3. Overall height adjustment
4. Backrest angle adjustment
5. Knee position adjustment

These basic functions are controlled through an electric hand-controller that allows caregivers to make precise adjustments efficiently. Standard ICU beds also come equipped with essential accessories including:

• Manual CPR handles for emergency situations
• Detachable head and foot boards
• Protective guardrails
• Central locking castor system for secure positioning

Standard ICU Bed Technical Specifications

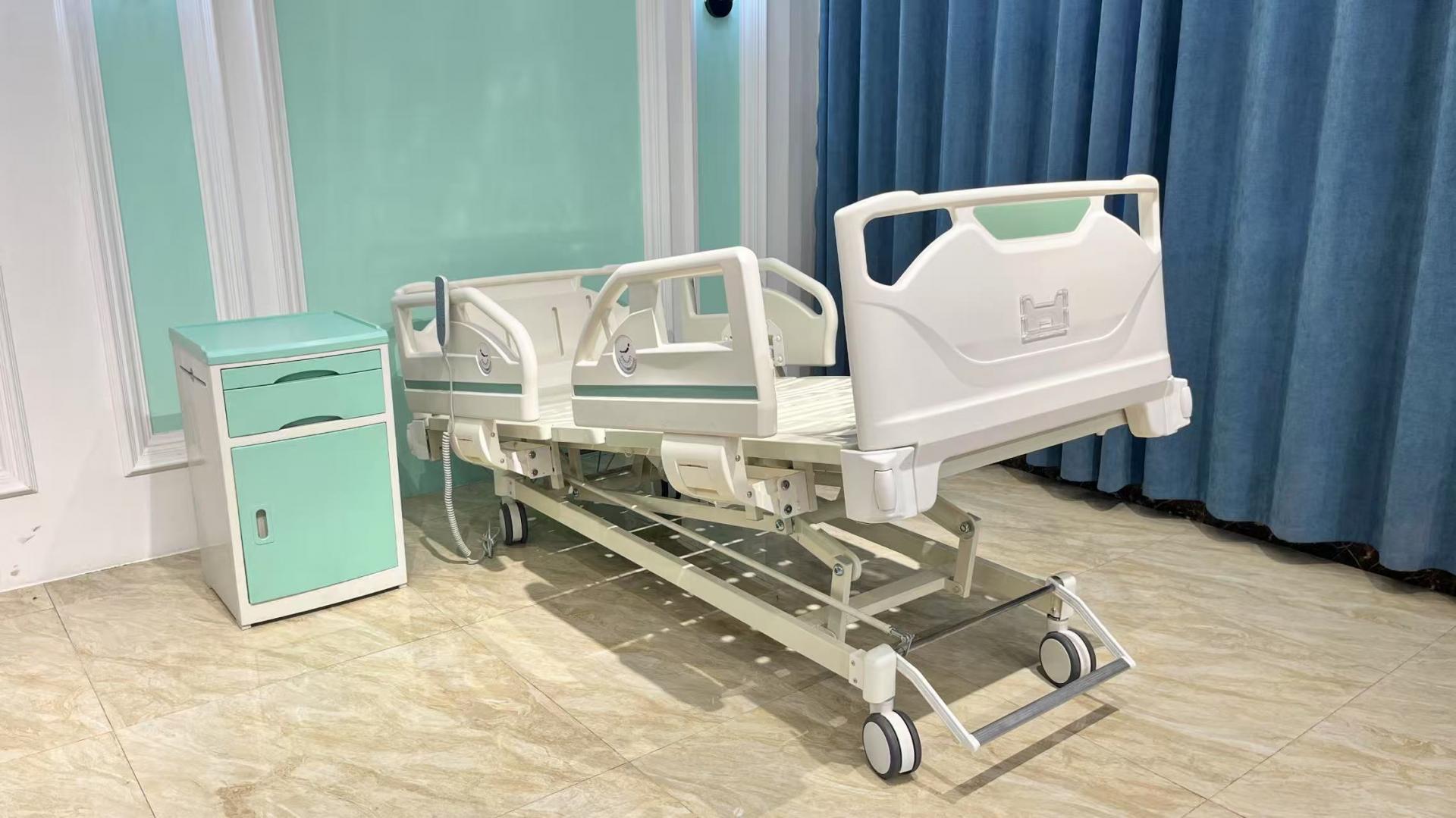

Revers-trendelenburg poistion on intensive care unit

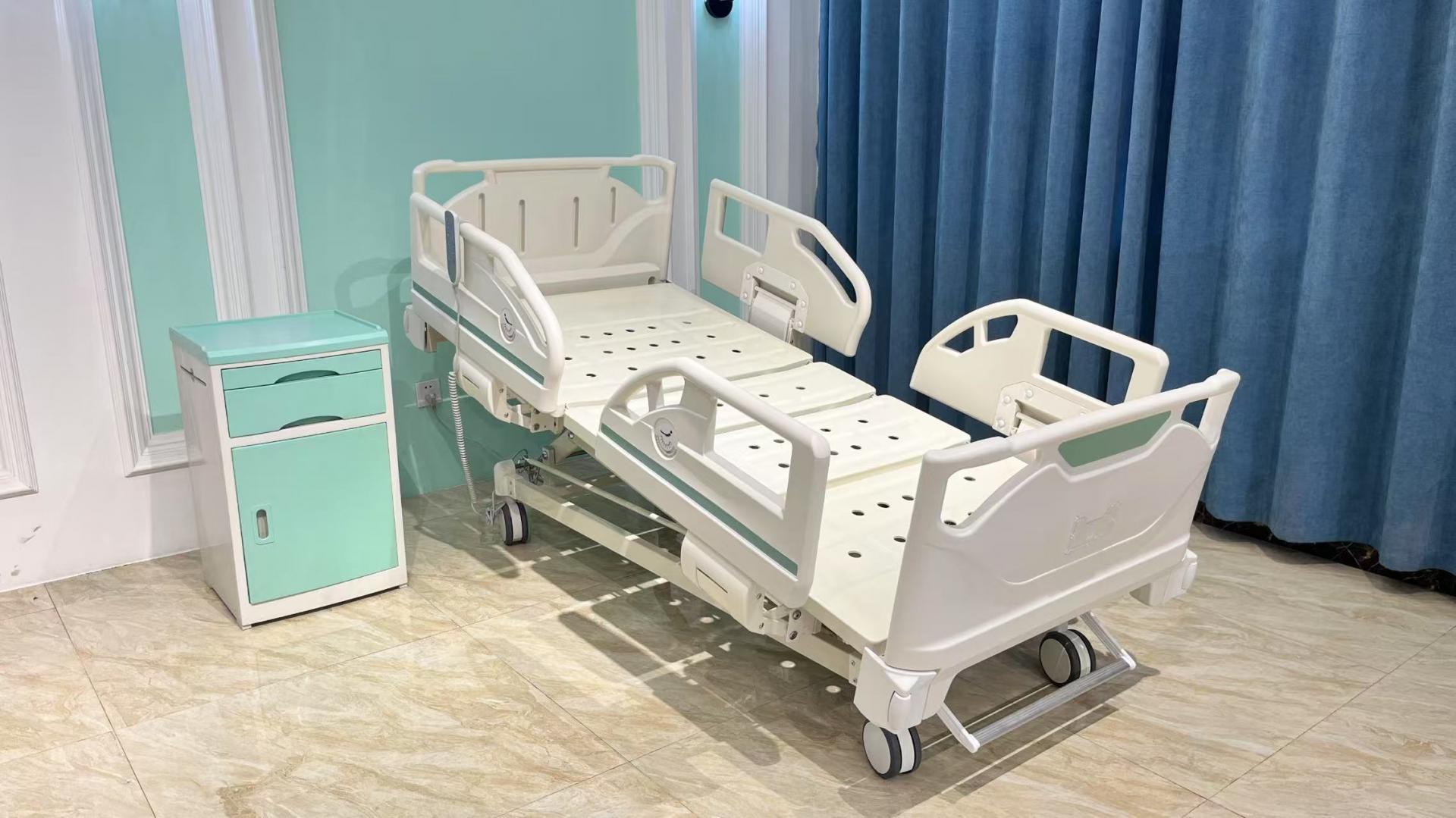

Trendelenburg standard icu bed

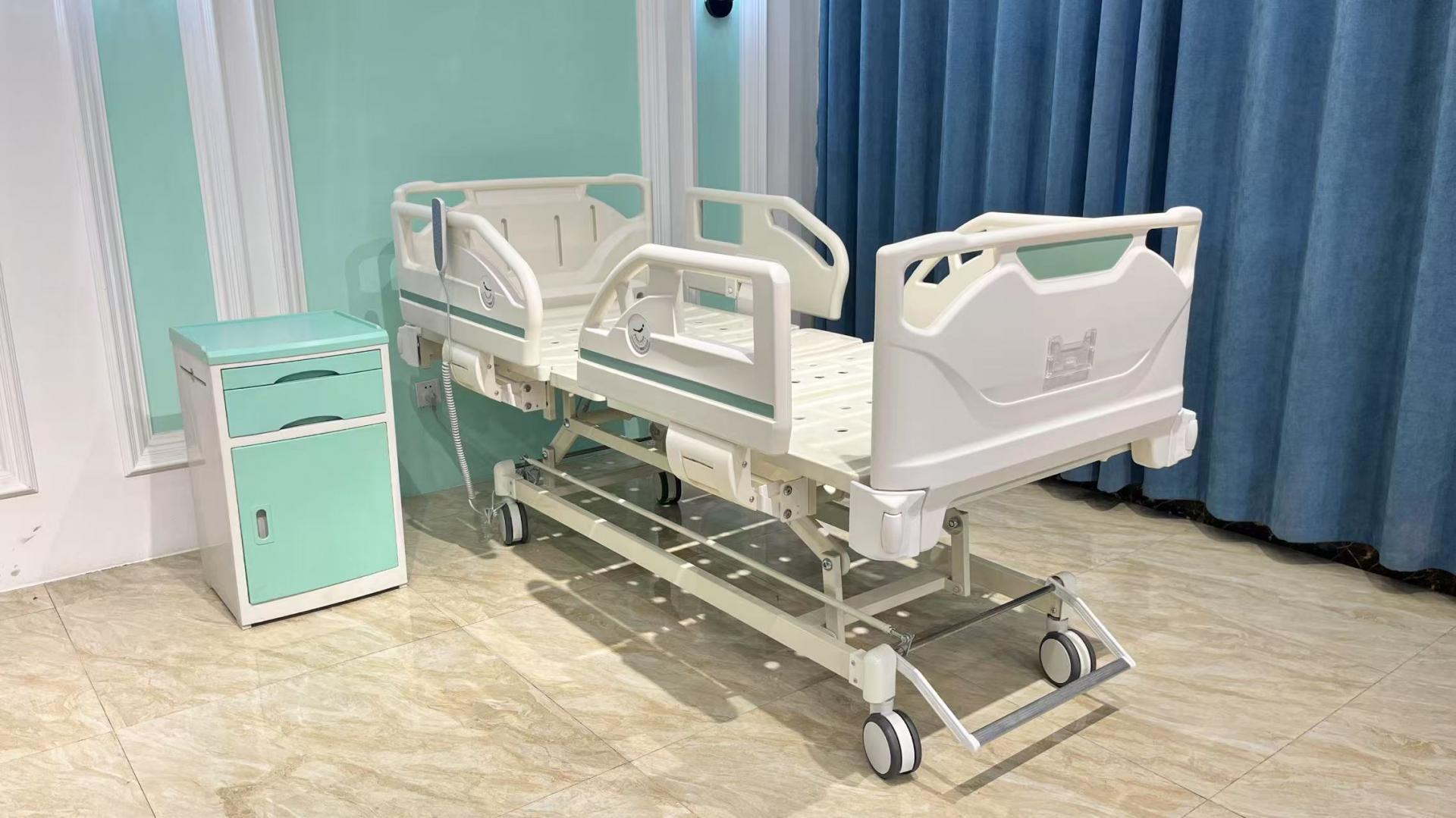

overall height adjustment

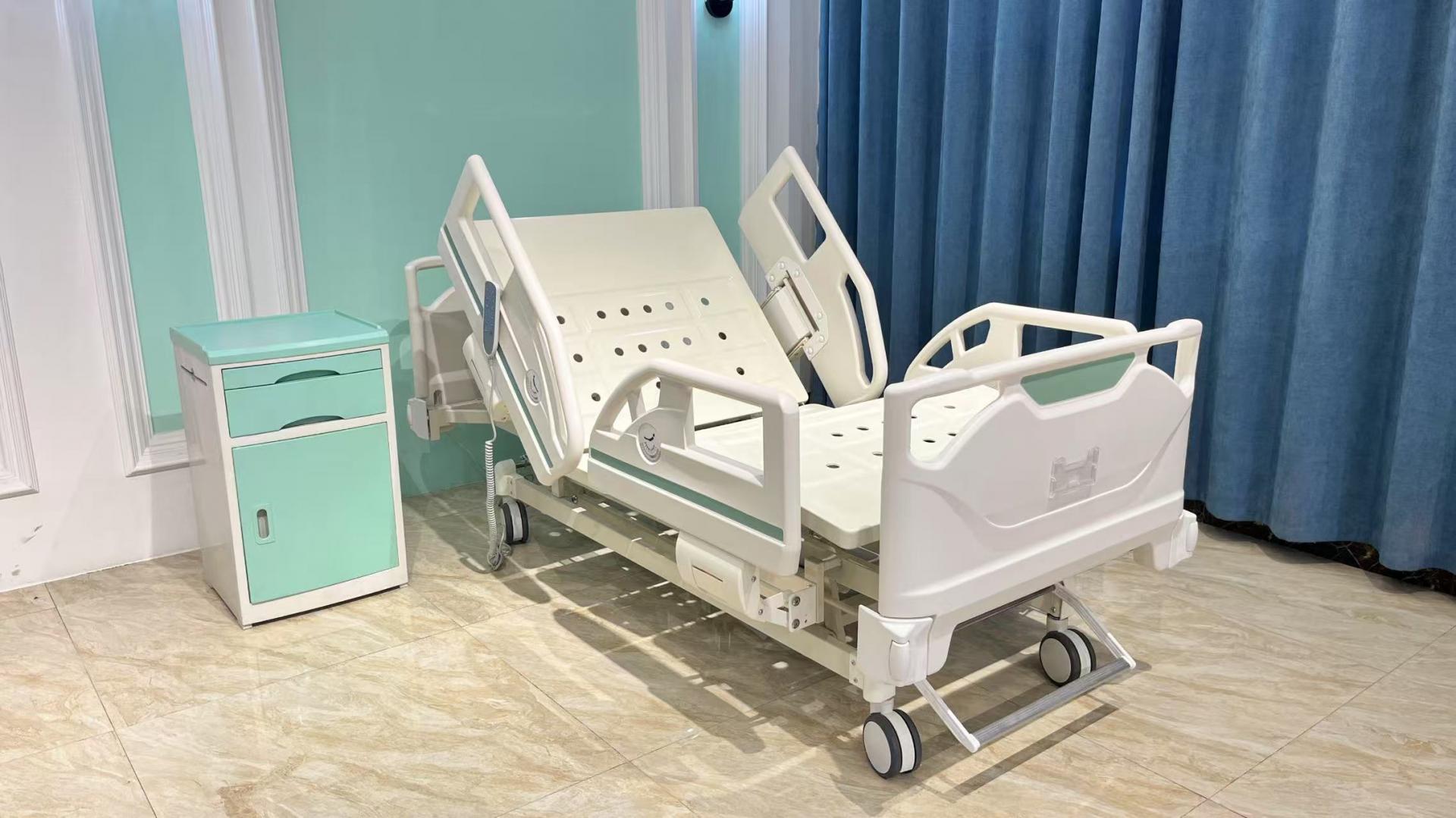

back and knee raise position

A basic ICU bed typically offers the following specifications:

• Overall dimensions: Approximately 2150mm × 980mm × 480-700mm
• Frame construction: Perforated epoxy powder-coated steel
• Weight capacity: 240 kg (480 lbs)
• Platform design: Perforated steel platform with ventilation holes
• Backrest lifting angle: 0-85°
• Knee-rest lifting angle: 0-45°
• Trendelenburg/reverse capabilities: 15°±2°
• Height adjustment range: 480-750mm

These specifications represent industry standards, but successful distributors know that the ability to adapt to project-specific requirements is where true value lies.

Beyond the Basics: Enhanced ICU Bed Features

Hospital projects often require additional features beyond the standard configuration. These enhanced specifications might include:

Extended Control Options

• Nurse touch control boards mounted on the bed frame
• Control buttons integrated into guardrails (allowing both patient and nurse access)
• Dual-sided CPR emergency release handles

Advanced Patient Care Features

• One-key heart chair positioning capabilities
• Bed exit alarm systems for patient safety
• Option: Embeded control buttons on guardrails, patient is easy to access to
• X-ray translucent backrest materials for imaging without patient transfer

Parameter:

Premium ICU Bed Capabilities

For specialized units or premium healthcare facilities, ICU beds may incorporate sophisticated features such as:

• Extendable foot sections (up to 20cm additional length)
• Integrated patient weighing systems
• Lateral tilt capabilities (0-12° or more)
• X-ray positioning functionality
• Foot pad controls for hands-free adjustments
• Five-motor systems (versus standard four-motor configurations)

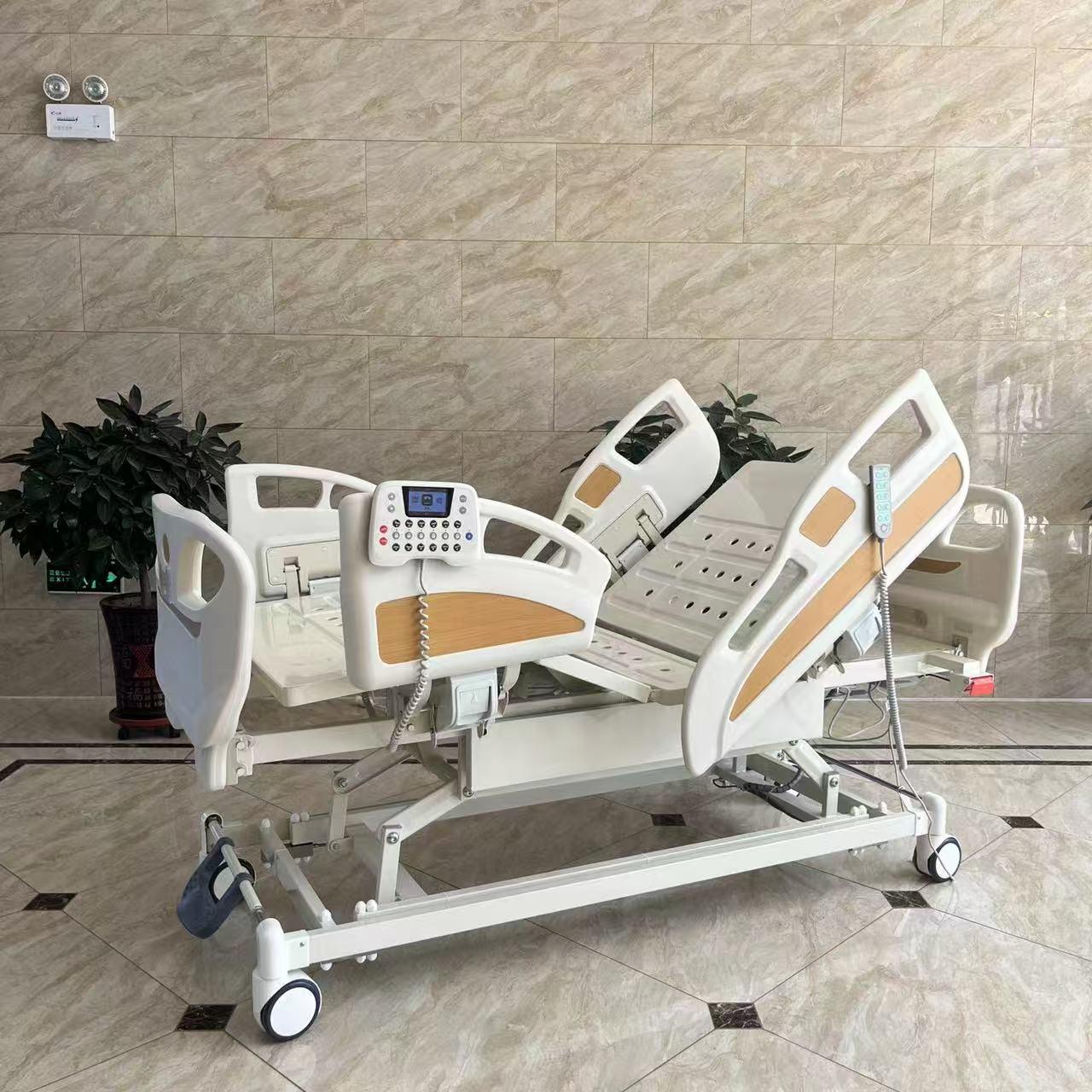

back and knee adjustment position icu bed with nurse control station

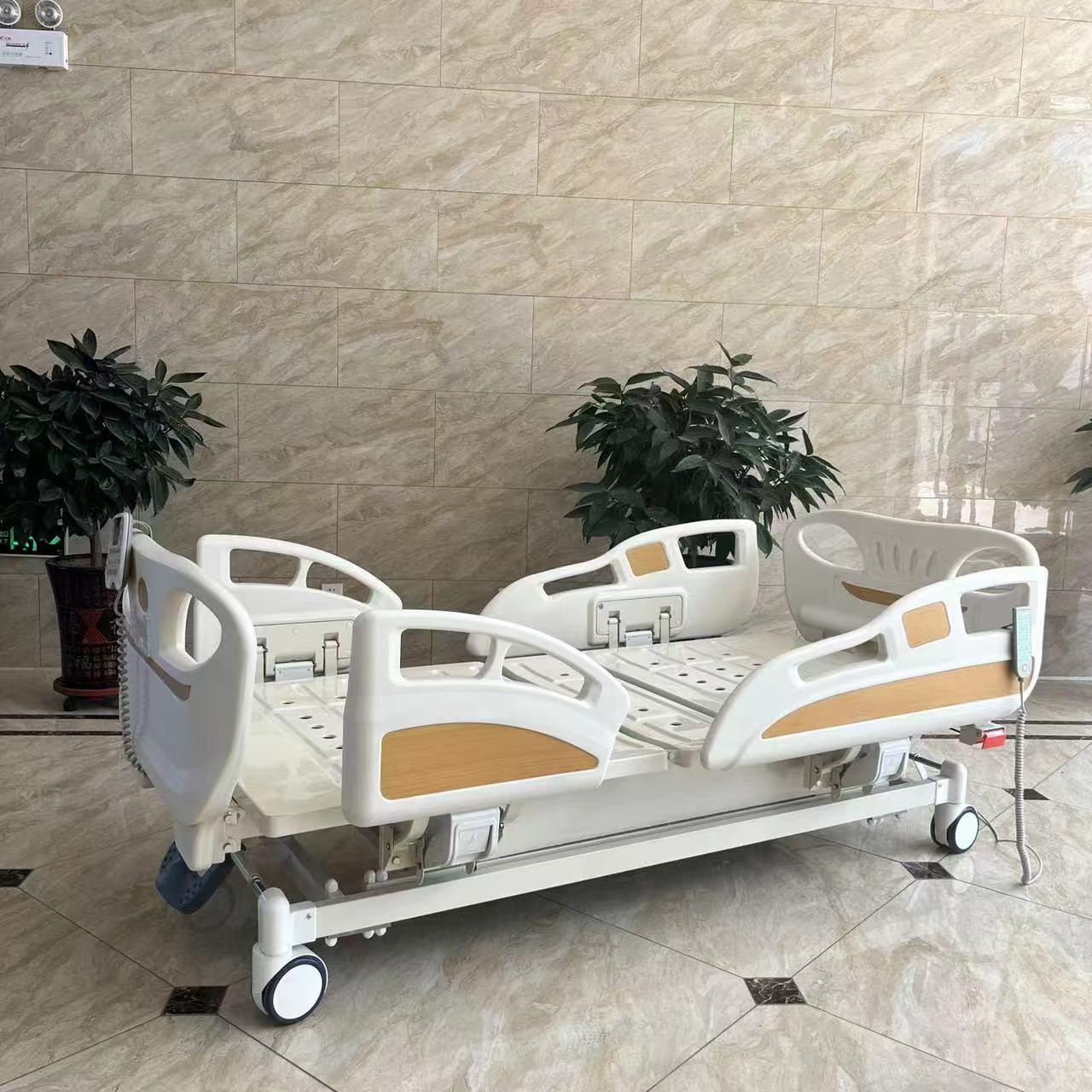

flat position

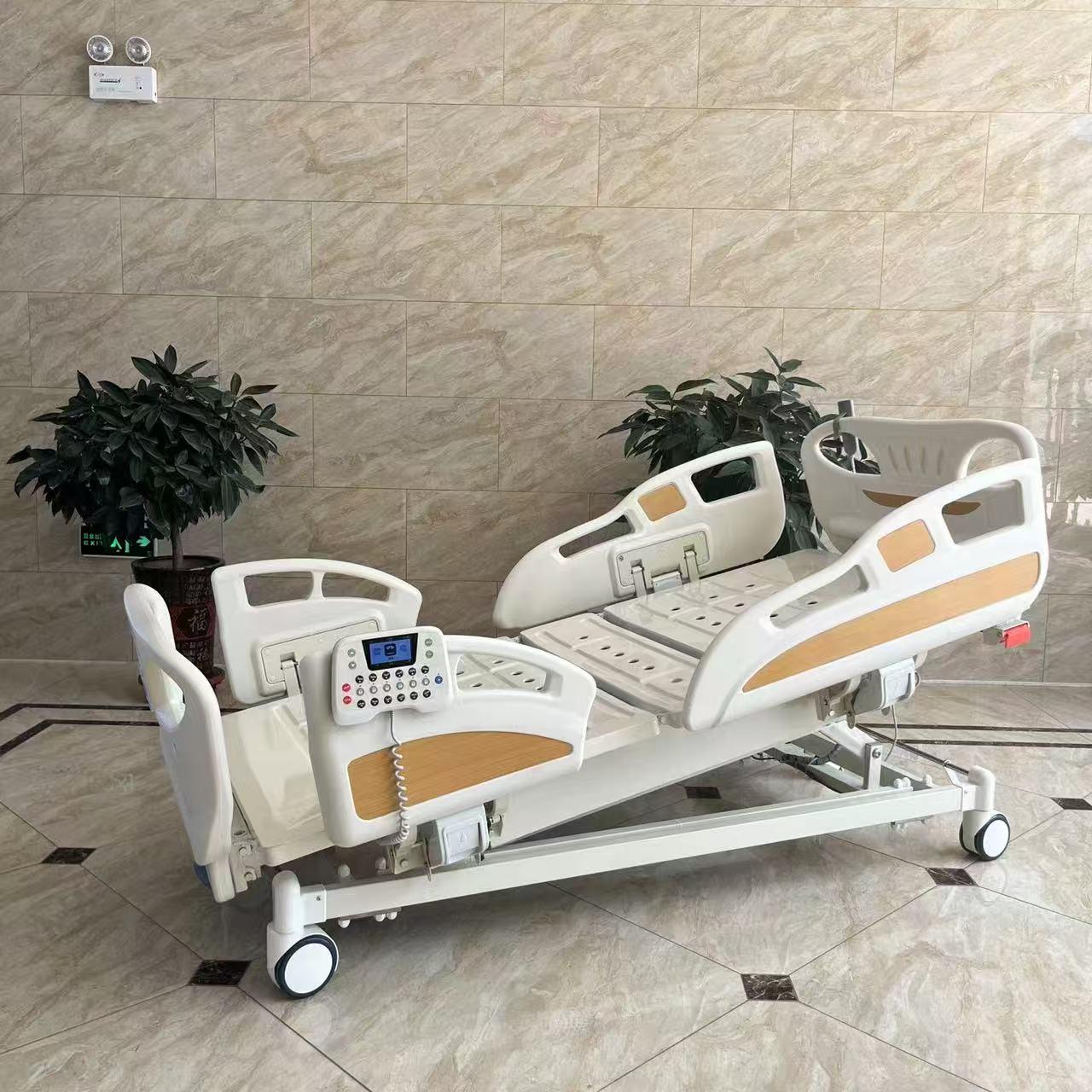

Revers-trendelenburg position

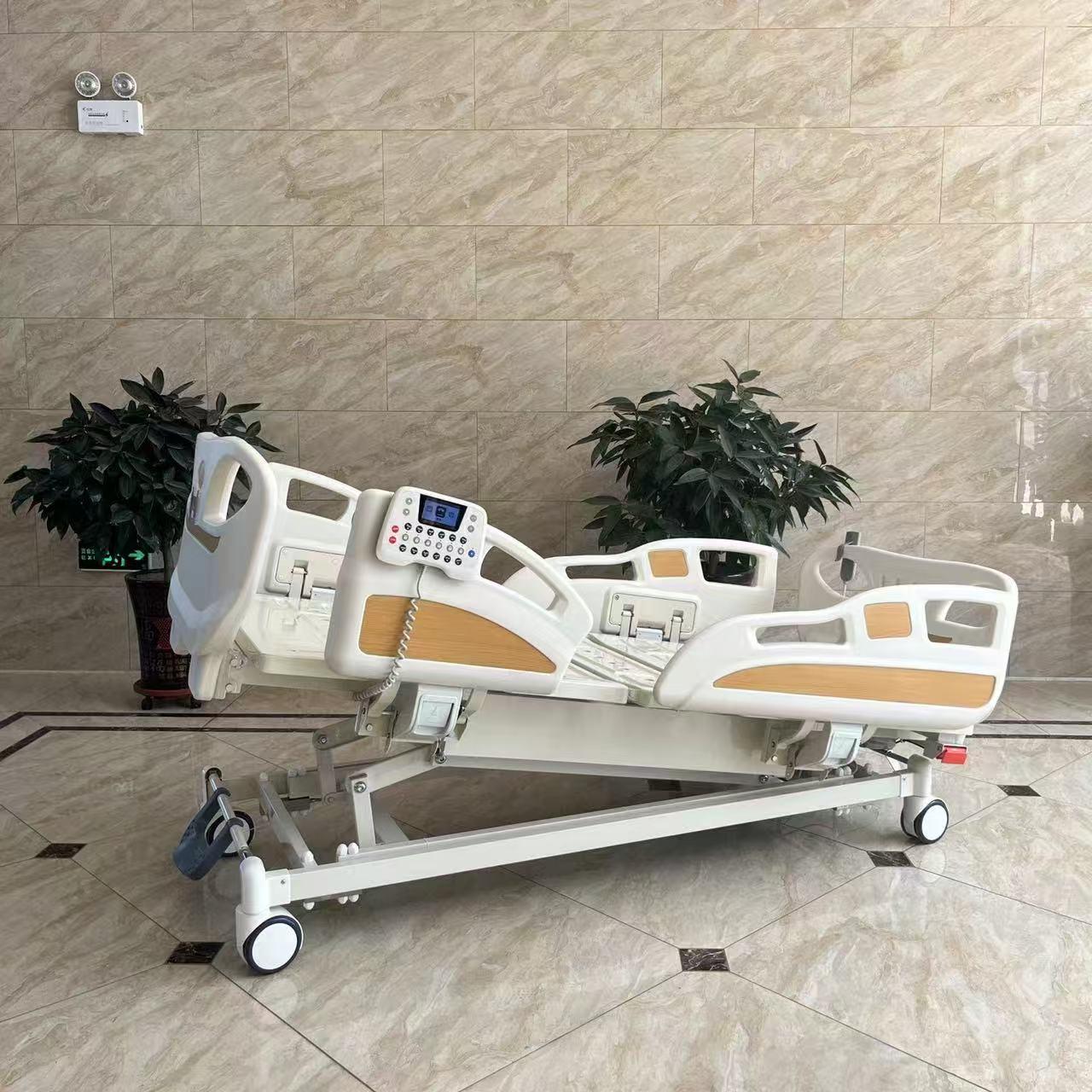

Trendelenburg x-ray icu bed

Digital Nurse Control Station

Specification:

Critical Considerations for Distributors

When approaching ICU bed tenders or hospital projects, distributors should consider several factors to ensure successful outcomes:

1. Specification Alignment

Review project specifications thoroughly and identify both mandatory and preferred features. Work with hospital bed manufacturers who can accurately interpret technical requirements outlined in tender documents.

2. Customization Capabilities

Partner with manufacturers who demonstrate flexibility in customizing ICU beds to meet specific project requirements. The ability to add or modify features can be a significant competitive advantage.

3. Quality Assurance

Ensure that ICU beds meet or exceed relevant medical device standards and certifications. Quality issues can result in project delays, increased costs, and potential reputation damage.

4. Supply Chain Reliability

Consider manufacturers with robust supply chains that can source specialized components needed for advanced features. Delays in obtaining critical components can jeopardize project timelines.

5. Technical Support

Evaluate manufacturer support capabilities, including installation assistance, staff training, and ongoing technical support. These services add significant value to healthcare facilities.

Selecting the Right Manufacturing Partner

The success of any ICU bed project heavily depends on choosing the right manufacturing partner. Look for manufacturers with:

1. Proven experience in healthcare settings
2. Understanding of clinical workflows and requirements
3. Engineering expertise to customize solutions
4. Production capacity to meet project timelines
5. Quality management systems
6. International export capabilities
7. Responsive customer service

Manufacturers like Anyang Top Medical Devices in China exemplify these qualities, offering extensive experience in international sales combined with engineering expertise. Their ability to interpret complex specifications and access to robust supply chains for raw materials and accessories positions them as valuable partners for hospital supplies distributors.

Preparing a Competitive Tender Response

When responding to ICU bed project tenders, distributors should:

• Thoroughly document how proposed solutions meet all mandatory specifications
• Highlight value-added features that exceed minimum requirements
• Provide clear technical documentation and certification evidence
• Outline implementation timelines and support services
• Include references from similar successful projects

Conclusion

ICU bed supply projects represent both a challenge and an opportunity for hospital supplies distributors. The unique nature of each project demands attention to detail, technical understanding, and strong manufacturer partnerships. By recognizing that every ICU bed project is unique and working with experienced manufacturers who can customize solutions, distributors can successfully navigate the complexities of healthcare procurement.

For distributors and importers seeking reliable ICU bed supplies, partnering with established manufacturers who understand the intricacies of healthcare specifications is essential. These partnerships enable distributors to offer healthcare facilities precisely what they need—high-quality ICU beds that combine mandatory functionality with project-specific features.

In an industry where patient care depends on equipment reliability, the value of experienced manufacturing partners cannot be overstated. By focusing on quality, customization, and technical expertise, distributors can position themselves as trusted advisors in the healthcare procurement process, creating value for both healthcare providers and the patients they serve.
