[caption id="attachment_273" align="alignleft" width="1024"]
icu bed trendelenburg[/caption]
[caption id="attachment_272" align="alignleft" width="1024"]
high low icu hospital bed[/caption]
[caption id="attachment_270" align="alignleft" width="1024"]

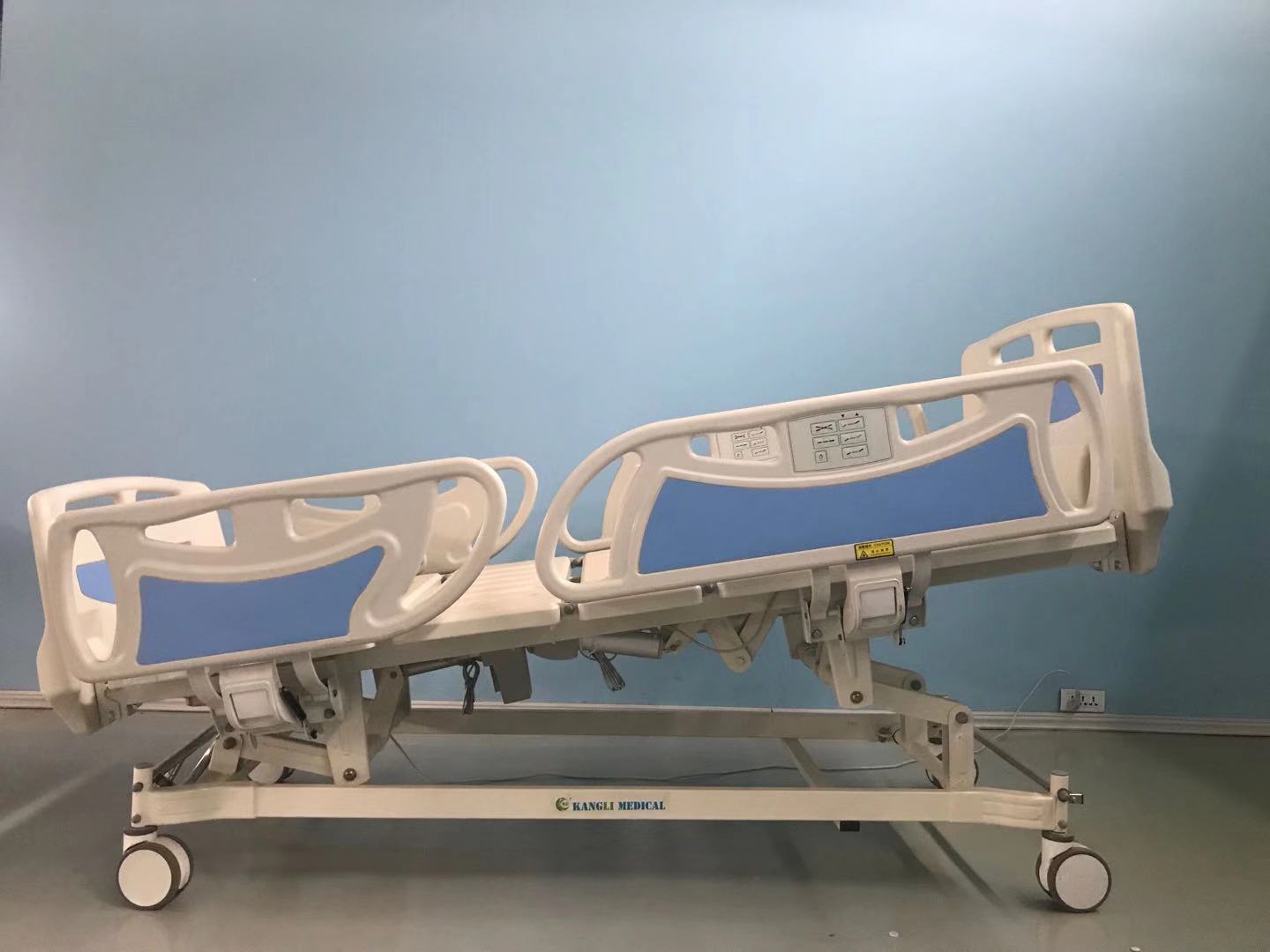

electric iuc intensive care bed backrest[/caption]The ICU bed is designed to provide optimal patient care in intensive care units.
With a range of features and adjustable Trendelenburg, backrest, and more positions, this electric ICU bed is perfect for patients who require close monitoring and treatment.
Support OEM/Private Label/Hospital Tender Project Service
The ICU bed position features:
1, Back support 0˚-75˚
2, Foot support 0˚–45˚
3, Height adjustment 450–750 mm +/- 10 mm
4,Trendelenburg and Trendelenburg reversed – at least 12 degrees
The ICU bed has five basic adjustment functions, including height, back and foot up &down, and Trendelenburg positions, for patient comfort and care. It also features a manual CPR release and electric controller for operation.
This ICU hospital bed is equipped with world-leading brand powered motor-Original Denmark Linak or others branded actuator options, which is the profession in medical industry, ensuring the most premium and safety for patient. It is an intensive care bed for ICU purpose.
Electric ICU bed is concealed side rails design, it is convenient for patient to put in or off the ICU bed. With nursing touch control board and wired-handheld controller, it is a great job for patient, caregiver, doctor to process the 5 function ICU electric bed.
ICU bed nurse controls
Nurse Control Station Buttons Functions:
No. 1, Switch: Powers the bed and enables all functions.
No. 2, Stop: Halts all bed movements for safety.
No. 3, One-Button CPR: Flattens bed for CPR and raises head.
No. 4, Head Up/Down: Adjusts upper body angle.
No. 5, Foot Up/Down: Controls foot section elevation.
No. 6, Fowler Position: Adjusts bed to a sitting position.
No. 7, Height: Raises/lowers the entire bed.
No. 8, Trendelenburg/Reverse: Positions bed with feet/head higher.
No. 9, Cardiac Position: Adjusts bed for cardiac patient comfort.
No. 10, One-Button Trendelenburg: Quick Trendelenburg position.
No. 11, Under-Light: Illuminates bed area, battery-powered.
These functions provide nurses with efficient and precise control over the ICU bed, aiding in patient care and comfort.
1,Ensuring the best pulmonary ventilation
2, Reduce the risk of Escher
3, The Highest comfort for the patient
| Parameter | Specification |
|---|---|
| Product Name | ICU Electric Intensive Care Bed |
| Overall Dimensions | L2150mm × W980mm × H480-700mm |
| Hospital Bed Frame | Perforated epoxy powder coated steel |
| Bed Weight | 100 kg |
| Bed Platform | MS perforated platform with ventilation holes |
| Loading Capacity | 400 kg (800 lbs) |
| Electric Voltage | 110V/60Hz or 220V/50Hz |
| Function | Range/Capability |
|---|---|
| Backrest Lifting Angle | 0-85° |
| Knee-rest Lifting Angle | 0-45° |
| Reverse and Trendelenburg | 15° ± 2° |
| Hi-lo Adjustment | 480mm – 750mm |
| Special Functions | • Manual CPR function
• One-key CPR function • Back battery for under light • One-key cardiac chair position • One-key trendenburg position |
Standard Accessories
| Item | Quantity | Specifications |
|---|---|---|
| Head & Footboard | 1 pair | Detachable ABS |
| Side Rails | 2 pairs | ABS all surrounded concealed with angle indicator |
| Motors | 4 units | Denmark LINAK actuators |
| Castors | 4 pieces | 6″ (150mm) Deluxe with central locking system |
| Braking Pedals | 1 set | – |
| Nurse Controller | 1 pc | – |
| Wired-hand Controller | 1 pc | – |
| IV Pole Mounting Holes | 4 pcs | – |
| IV Pole | 1 pc | Adjustable height with 4pcs drainage bag hooks |
Packaging
| Parameter | Specification |
|---|---|
| Box Dimensions | L2000mm × W1000mm × H550mm |
As we are profession ICU bed manufacturer, we can customize the hospital bed function as request.
The following is the most running optional function available.
1,The Inuit control panels on both sides of guard rail for nurse /patients to adjust bed position easily;
2,hospital bed head 20 cm extension-length;
3,Foot pedal for integral ICU hospital bed high and low;
4,Integrated weighting scale digital LCD, weight data can be stored and managed;
5,place patient in a chair position.
6,One key heart chair position
7,ICU Bed mounts on two telescopic columns, patient digital weighing scale record.
8, X-ray cassette on back option
Click following 4 piece images alone, it will present clear big one for the embedded control on ICU bed Trendelenburg and reverse position, one key heart chair position, keen and back adjustment function.
Q: What is the standard price of a hospital ICU bed?
A: The standard price of a hospital ICU bed with standard accessories, including manual CPR release function, China Jiecang brand motor, and nursing control station, is $1000 USD per set.
Q: What is included in the standard package?
A: The standard package includes the ICU bed, manual CPR release function, China Jiecang brand motor (or Denmark Linak brand motor), and nursing control station. The package also includes six-layer paper in full contour.
Q: How many ICU beds can fit in a 40ft container?
A: 44 ICU beds can fit in a 40ft container.
Q: Are there any customization options available?
A: Yes, customization options are available. Please contact us for a quote and we will provide you with a customized price based on your specific requirements.
Q: How do I get a quote for a customized ICU bed?
A: To get a quote for a customized ICU bed, please contact us with your specific requirements, including any additional features or accessories you would like to include. We will provide you with a customized price based on your specifications.
Q: What is the lead time for delivery?
A: The lead time for delivery varies depending on the customization options and the destination. Please contact us for a quote, and we will provide you with an estimated delivery time.
Q: Is there a warranty on the ICU bed?
A: Yes, there is a warranty on the ICU bed. Please contact us for more information on the warranty terms and conditions.
