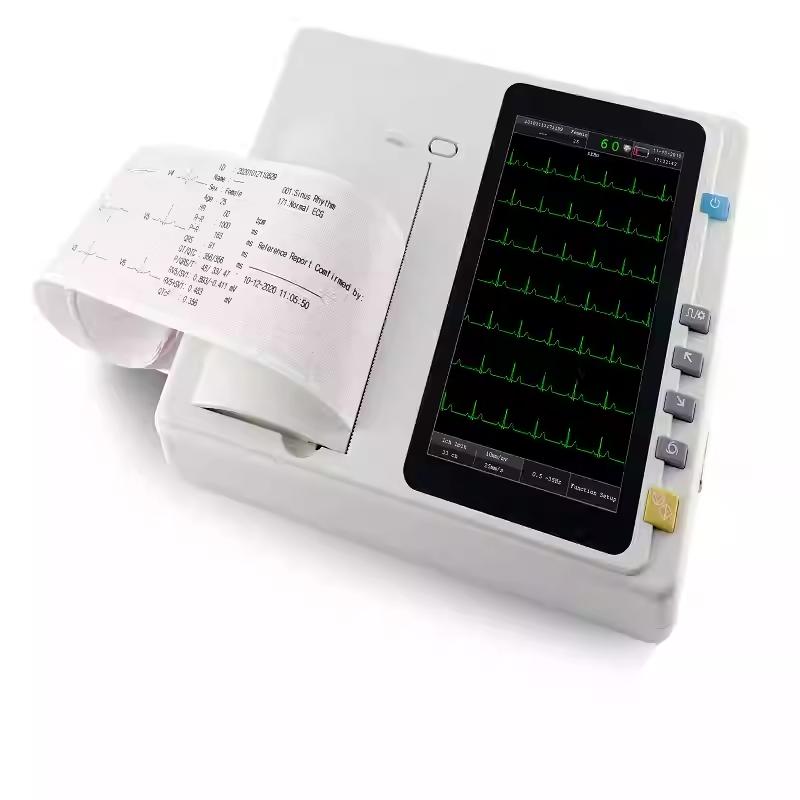

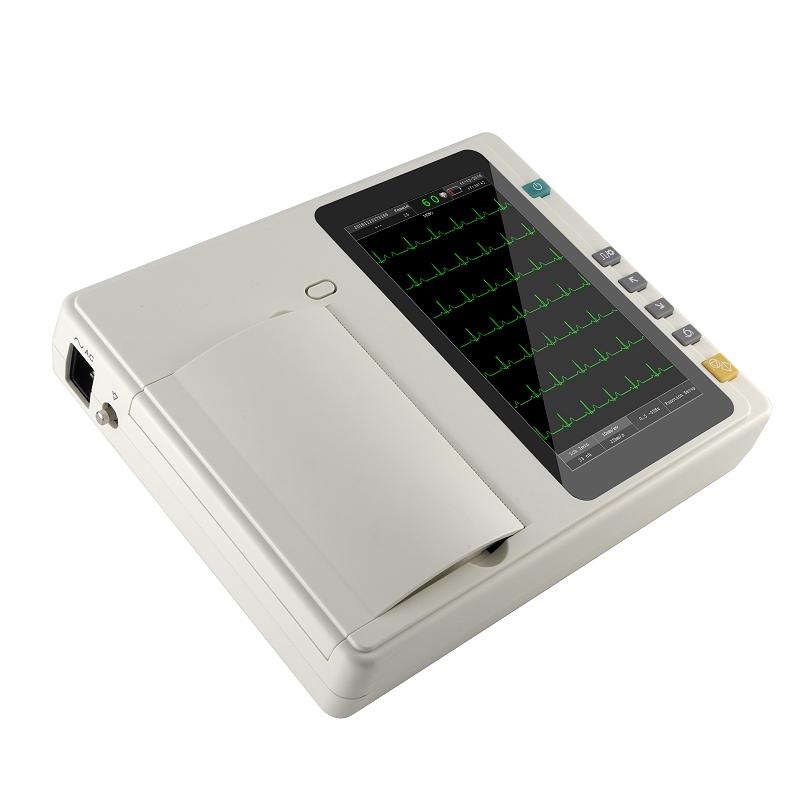

7-inch high-resolution color touch screen ECG Machine

Portable 12-Lead ECG Machine with Touch Screen & Thermal Printer

Accurate Monitoring : Captures 12-lead ECG data with precision for reliable heart health insights.
Easy to Use : Intuitive touch screen and one-touch controls simplify operation for all users.
Portable Design : Lightweight and rechargeable, perfect for use anywhere, anytime.

Furniture Hospital

Description

Portable 12-Lead ECG Machine with Touch Screen

The ECG machine is a portable, high-resolution device designed for accurate and efficient electrocardiogram monitoring. It features a 7-inch color touch screen, 12-lead simultaneous acquisition, and advanced digital filters for precise measurements. This device is ideal for clinical and diagnostic settings, offering a compact and lightweight design for ease of use.

Application

Clinical diagnostics
Cardiac monitoring
Emergency medical services
Healthcare facilities
Home health monitoring

Key Features

7-inch high-resolution color touch screen
12-lead simultaneous acquisition and display
ECG automatic measurement and interpretation function
Complete digital filters: resisting baseline drift, AC, and EMG interference
Compact and lightweight design

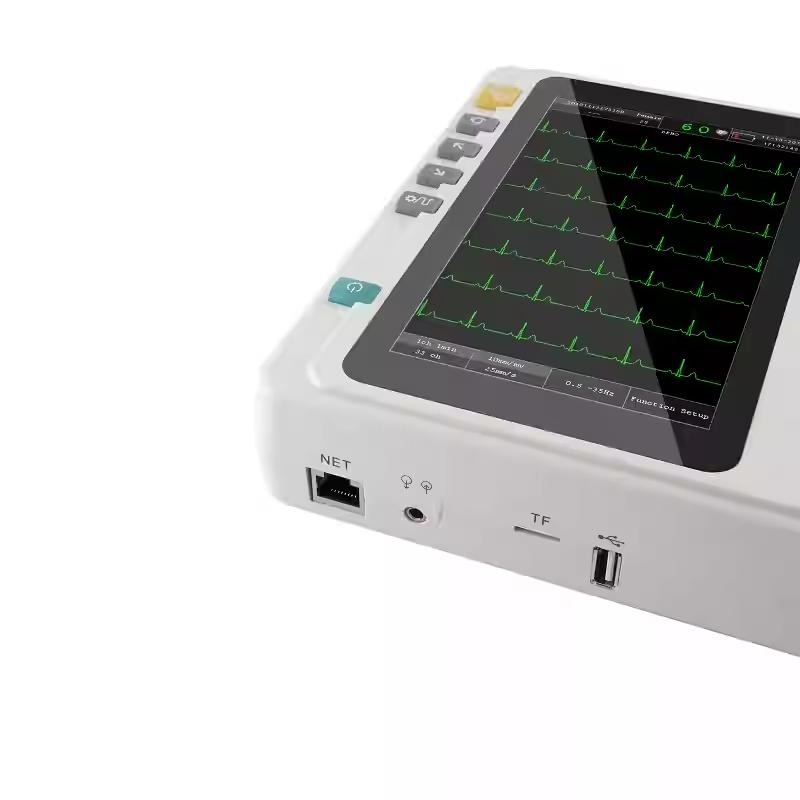

Supports USB flash disk and micro SD card for extended memory
Software upgradeable via USB/SD card
Built-in rechargeable Li-ion battery

Parameter

Parameter	Specification
Lead	Standard 12 leads
Acquisition Mode	Simultaneous 12 leads acquisition
Measurement Range	±5mVpp
Input Circuit	Floating, Protection circuit against Defibrillator effect
Input Impedance	≥50MΩ
Input Current Circuit	≤0.05µA
Record Mode	Automatic: 3CH+4+1R, 3CH+4, 3CHx2+3, 3CHx2+2, 3CHx2+1, 6CHx2; Manual: 3CH, 2CH, 3CH+1R, 2CH+1R; Rhythm: Any lead selectable
Filter	EMG Filter: 25 Hz / 35 Hz / 40 Hz / 75 Hz / 100 Hz / 150 Hz; DFT Filter: 0.05 Hz / 0.15 Hz; AC Filter: 50 Hz / 60 Hz
CMRR	>100dB
Patient Leak Current	<10µA (220V-240V)
Frequency Response	0.05Hz~150Hz (-3dB)
Sensitivity	2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error:±5%)
Anti-baseline Drift	Automatic
Time Constant	≥3.2s
Noise Level	≤15µVp-p
Paper Speed	12.5 mm/s, 25 mm/s, 50 mm/s
Recording Mode	Thermal printing system
Paper Specification	Roll 80mmx20M
Safety Standard	IEC I/CF
Sample Rate	1000sps/channel
Power Supply	Built-in lithium battery
Main machine	1 PC
Patient cable	1 PC
Limb electrode	1 set (4pcs)
Chest electrode	1 set (6pcs)
Power cable	1 PC
*50mm20M recording paper**	1 PC
Paper axis	1 PC
Power cord	1 PC
Single package size	32x25x17cm
Single gross weight	2.8 KG
8 unit per carton, package size	34x33x75cm, total gross weight 22 KG
