children hospital bed

Home child hospital bed children hospital bed

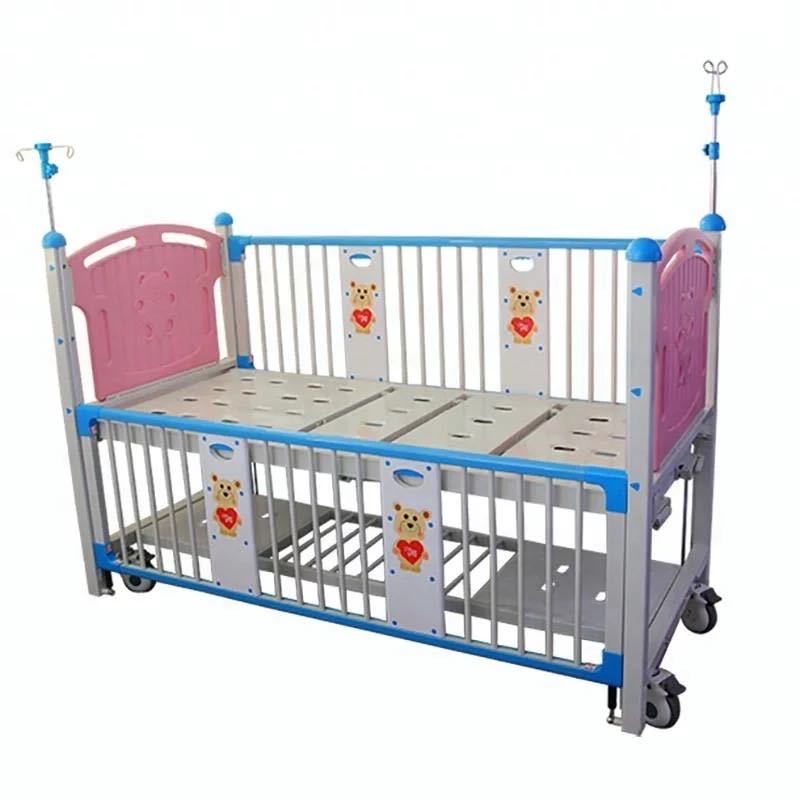

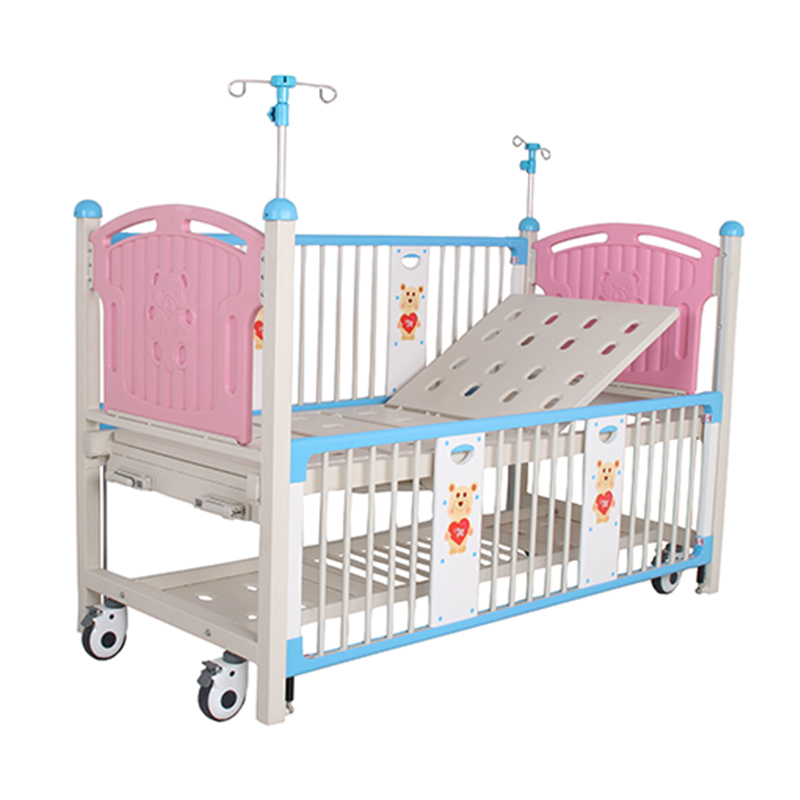

[caption id="attachment_614" align="aligncenter" width="800"]knee up and down child hospital bed knee up and down child hospital bed[/caption] [caption id="attachment_616" align="aligncenter" width="800"]back adjusable hospital bed children back adjusable hospital bed children[/caption] [caption id="attachment_615" align="aligncenter" width="800"]pediatric hospital bed pediatric hospital bed[/caption]

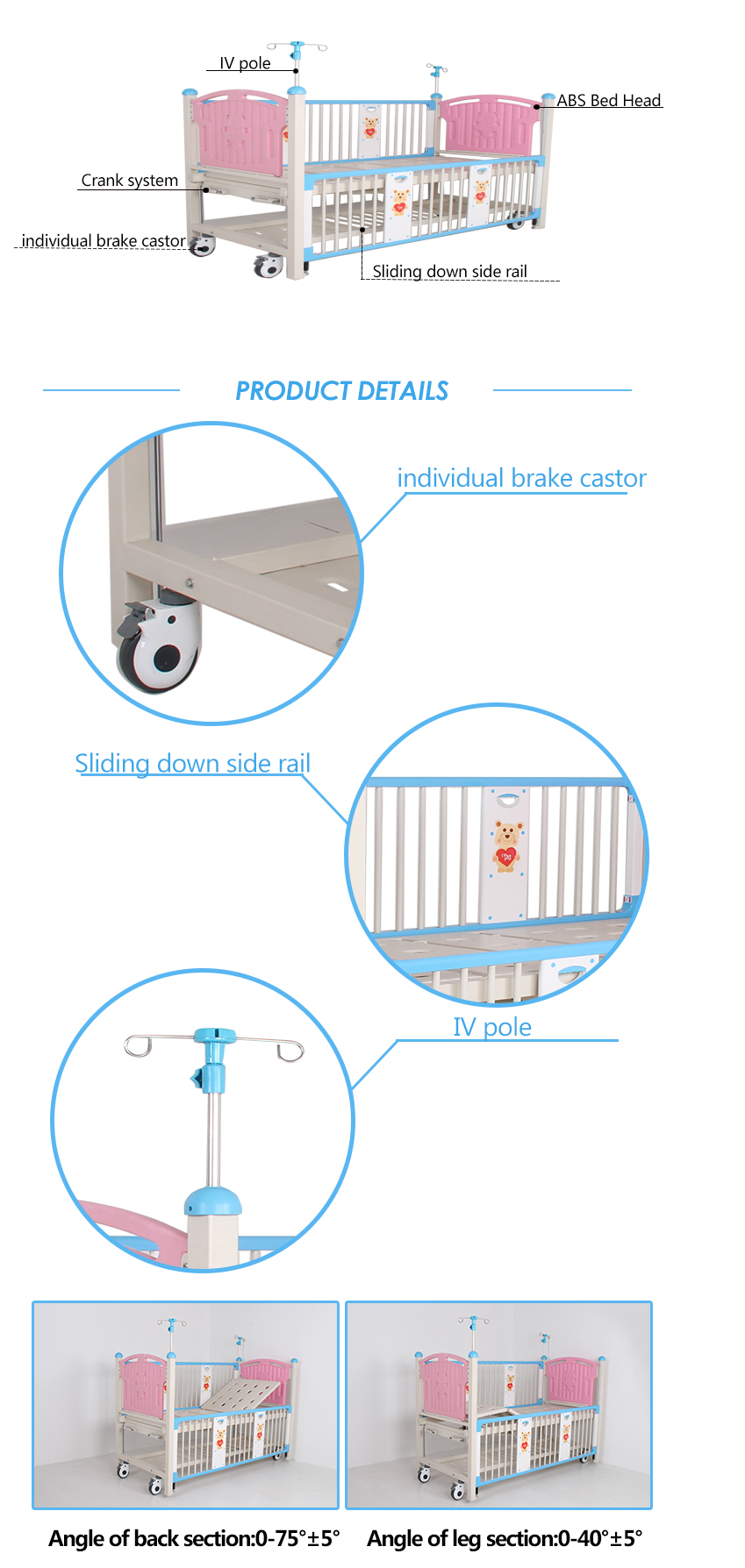

children hospital bed

Two manual cranks;



child hospital bed;



safety full hospital bed side rails

child hospital bed2020-03-27h90

Description

Children hospital bed

The children hospital bed is adjustable with the function of back and knee up and down. The bed feature of the two manual crank for the adjustment function.

There are four individual brake castors in all the legs for preventing skidding. These brakes will keep the bed aligned to the ground so that it won’t slide accidentally. As this is a child hospital bed, hence that sort of security is needed to protect the child. Also, there is a sliding downside rail so that your child doesn’t fall from the bed. The railings are enough strong and detachable also. If not needed, you can fold them and keep them in some other places. The presence of poles in each leg also adds security and safety to this bed.

The bed frame is made of good quality steel and is painted with some vibrant colors. Epoxy coating is done with an antibacterial option. There are two holes at the end of the bed to assemble the infusion holder if needed. These infusion stands are made of stainless steel and the height can be adjusted also. The wheels at the bottom are fixed with dustproof technology, silicon rubber is used as the material, and it is very smooth when pushed.

If you are looking for a child hospital bed, then this is the ideal one for your child. It has all the safety features so that a child can be secured enough. All the materials are of premium quality and beds are enough comfortable for your child.

Feature

Molded ABS head & footboard with cartoon photograph, attracting children’s attraction.

Punching platform, smooth surface no welding scar, bearing 250KG load.

Full SS IV pole, bearing 15 kg

Powder coated steel vertical bars,0 shaking, vertical bars distance is 6 cm, protect children’s safety.

Up and downside railing with 3 gears adjustable. Supported by gas spring system.

The children hospital bed is adjustable, manual 2 crank for back and knee up and down.

Utility holder & shoes holder

hospital bed for children

bed accessories feature

perforated platform with a smooth surface to support a load of 250 kg;
bed frame made of steel, painted in vivid colors;
painting process – epoxy, antibacterial tested;
the child hospital bed surfaces is tight to ensure cleaning and disinfection as easy as possible;
side rails up-down lattice with 3 adjustable levels supported by a hydraulic/ compressed gas, adjustments must be stable and could be locked automatically with the help of castor pedal;
the manual two cranks is retractable for back and knee adjustment;
the child hospital bed is provided with two holes at the ends for assembling the infusion holder;
the infusion stand is made of stainless steel, fitted with 2 hooks to hold the bags,height adjustable and with a minimum weight of 5 kg;
provided with four lateral double wheels with a diameter of 125 mm;
wheels fitted with a dust-proof system, silicone rubber on the tread that does not patch, scrape or cut the antibacterial linoleum.

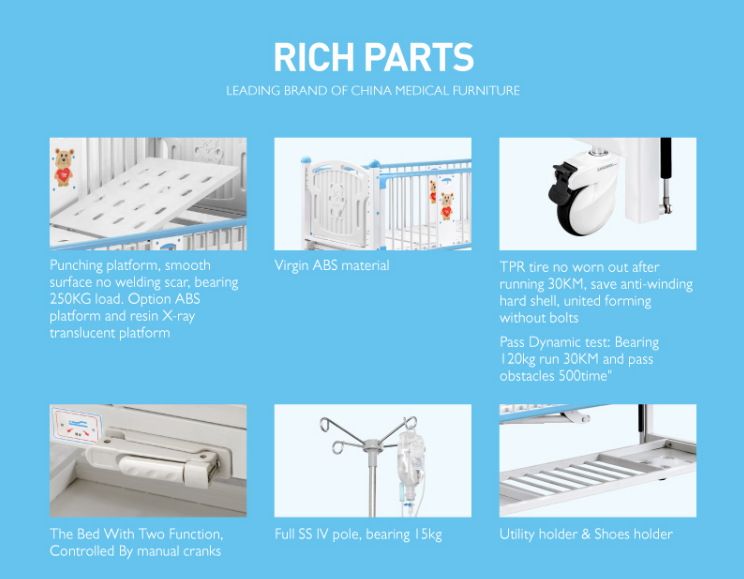

kid hospital bed parts

Parameter
Overall size  (L*W*H): 1880*900*640 mm(±10 mm)
Features:

Durable frame; bed surface adopts steel material which is one-step molding

Detachable ABS headboard, with optional colors
steel material platform
1 pair of collapsible  side rails
Easy use castors, with brakes, wheels φ125mm
Weight Loading a maximum patient weight capacity of up to 200 kg
Motor non-electric
Function Backrest max upward angle: 75°+/-5°

Leg rest max upward angle: 40°+/-5°

Standard accessories:

ABS Bed head/footboard 1 Pair
Side Rails 1 Pair
Cranks 2 PCs
Infusion Rod Holes 4 PCs
Drainage Hook 2 PCs
Diameter 125 mm castors 4 PCs
